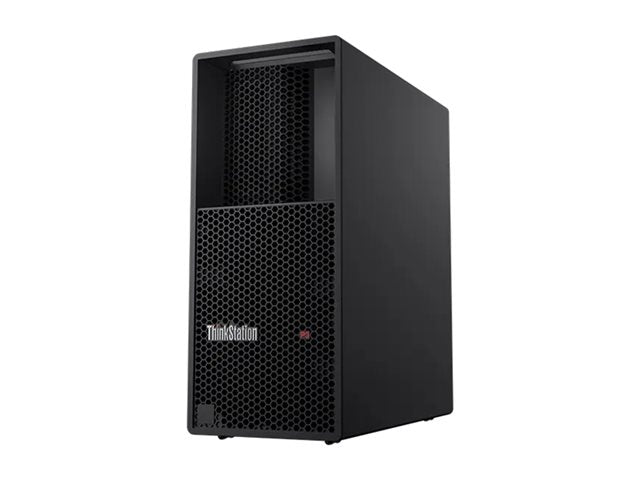

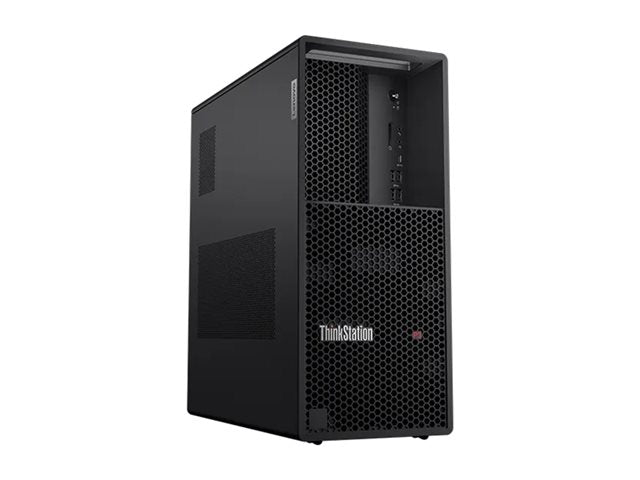

Lenovo ThinkStation P2 Gen 2 30JQ
AI Workstation
tower 1 x Core Ultra 7 265K / up to 5.5 GHz
vPro Enterprise
RAM 32 GB
SSD 1 TB
TCG Opal Encryption, NVMe, Performance
GeForce RTX 5070
Gigabit Ethernet
Win 11 Pro
monitor: none
keyboard: UK
Lenovo TopSeller
with 1 Year Lenovo Premier Support
Weight: 10.00 KG
Main specifications:-
| Product Description | Lenovo ThinkStation P2 Gen 2 - tower - AI Workstation - Core Ultra 7 265K - vPro Enterprise - 32 GB - SSD 1 TB - UK |
| Type | Workstation - tower - AI Workstation |
| Bundled Services | 1 Year Lenovo Premier Support |
| Platform Technology | Intel vPro Enterprise |
| Localisation | Language: English / region: United Kingdom |
| Processor | 1 x Intel Core Ultra 7 (Series 2) 265K (up to 5.5 GHz, (20-core) |
| Processor Socket | FCLGA1851 Socket |
| Neural Processor Unit (NPU) | Intel AI Boost - up to 13 TOPS |
| Cache Memory | 30 MB |
| Cache Per Processor | 30 MB |
| RAM | 32 GB (installed) / 128 GB (max) - DDR5 SDRAM - non-ECC |
| Storage Controller | NVMe; SATA |
| Hard Drive | SSD 1 TB - PCI Express 4.0 x4 - M.2 2280 - TCG Opal Encryption, NVM Express (NVMe), Performance |
| Optical Storage | No optical drive |
| Card Reader | Yes |
| Multi-GPU Configuration | 1 single GPU card / integrated GPU |
| Graphics Controller | NVIDIA GeForce RTX 5070 / Intel Graphics - up to 8 TOPS |
| Video Memory | 12 GB GDDR7 SDRAM |
| Networking | 1GbE |
| Keyboard | UK |
| Power | (50/60 Hz) |
| OS Provided | Windows 11 Pro |
| Software Included | Lenovo AI Now |
| Dimensions (WxDxH) | 17 cm x 31.535 cm x 37.6 cm |
| Weight | 9.67 kg |
| Manufacturer Selling Program | Lenovo TopSeller |
| Environmental Standards | EPEAT Gold |
| Manufacturer Warranty | Base warranty - 3 years - on-site ¦ Extended warranty - 1 year - on-site - response time: next business day |
Extended specification:-
General
| Product Form Factor |
Tower
|
| Type |
Workstation
|
| Localisation |
Language: English / region: United Kingdom
|
| Bundled Services |
1 Year Lenovo Premier Support
|
| Embedded Security |
Discrete Trusted Platform Module (TPM 2.0) Security Chip
|
| Platform Technology |
Intel vPro Enterprise
|
| AI Level |
AI Workstation
|
Expansion / Connectivity
| Interfaces |
1 x USB-C 3.2 Gen 2x2 (1 front) (data only)
3 x USB 3.2 Gen 1 (2 front, 1 rear)
2 x USB 3.2 Gen 2 (2 front)
1 x headphones/microphone (1 front)
1 x microphone (1 front)
2 x USB 2.0 (2 rear)
1 x USB 3.2 Gen 1 (1 rear) (supports SmartPower On)
1 x HDMI (1 rear) (TMDS compatible)
2 x DisplayPort 1.4 (2 rear)
1 x LAN (Gigabit Ethernet) (1 rear)
1 x audio line-out (1 rear)
|
Manufacturer Warranty
| Service & Support |
Base warranty - 3 years - on-site
Extended warranty - 1 year - on-site - response time: next business day
|
RAM
| Configuration Features |
1 x 32 GB
|
| Features |
Unbuffered, dual channel memory architecture
|
| Form Factor |
DIMM 288-pin
|
| Slots |
4 (Total) / 3 (empty)
|
| Technology |
DDR5 SDRAM - non-ECC
|
| Installed Size |
32 GB (installed) / 128 GB (max)
|
| Effective Memory Speed |
5600 MT/s
|
| Rated Memory Speed |
5600 MT/s
|
Networking
| Data Link Protocol |
Ethernet, Fast Ethernet, Gigabit Ethernet
|
| Ethernet Controller |
Intel I219-LM
|
| Features |
Intel Active Management Technology (AMT) 16
|
Miscellaneous
| Theft/Intrusion Protection |
Security lock slot (cable lock sold separately), padlock loop
|
| Security Slot Type |
Kensington security slot
|
| Compliant Standards |
FIPS 140-2, TCG Certified
|
| Manufacturer Selling Program |
Lenovo TopSeller
|
Power
| Device Type |
Power supply
|
| 80 PLUS Certification |
80 PLUS Platinum
|
| Voltage Required |
AC 100-240 V (50/60 Hz)
|
| Power Provided |
750 watt
|
Storage Controller
| Type |
NVMe
|
Cache Memory
| Installed Size |
30 MB
|
| Cache Per Processor |
30 MB
|
Optical Storage
| Type |
No optical drive
|
Operating System / Software
| OS Provided |
Windows 11 Pro English
|
| Software |
Lenovo AI Now
|
Monitor:-
| Monitor Type |
None.
|
Graphics Controller
| Multi-GPU Configuration |
1 single GPU card / integrated GPU
|
| Video Memory |
12 GB GDDR7 SDRAM
|
| Graphics Processor |
NVIDIA GeForce RTX 5070 / Intel Graphics - up to 8 TOPS
|
Audio Output
| Compliant Standards |
High Definition Audio
|
Storage Controller (2nd)
| Type |
SATA
|
Hard Drive
| Capacity |
1 x 1 TB
|
| Type |
SSD - M.2 2280
|
| Interface Type |
PCI Express 4.0 x4
|
| Features |
TCG Opal Encryption, NVM Express (NVMe), Performance
|
Input Device
| Type |
Mouse, keyboard
|
Dimensions & Weight
| Width |
17 cm
|
| Height |
37.6 cm
|
| Weight |
9.67 kg
|
| Depth |
31.535 cm
|
Keyboard
| Interface |
USB
|
| Localization & Layout |
UK
|
| Keyboard Name |
Lenovo Calliope Keyboard
|
Card Reader
| Supported Flash Memory Cards |
SD Memory Card
|
| Type |
Card reader
|
Mouse
| Interface |
USB
|
| Mouse Name |
Lenovo Calliope Mouse
|
Processor / Chipset
| CPU Qty |
1
|
| Max CPU Qty |
1
|
| Max Turbo Speed |
5.5 GHz
|
| Number of Cores |
20-core
|
| CPU Socket |
FCLGA1851 Socket
|
| CPU |
Intel Core Ultra 7 (Series 2) 265K
|
| Chipset Type |
Intel W880
|
