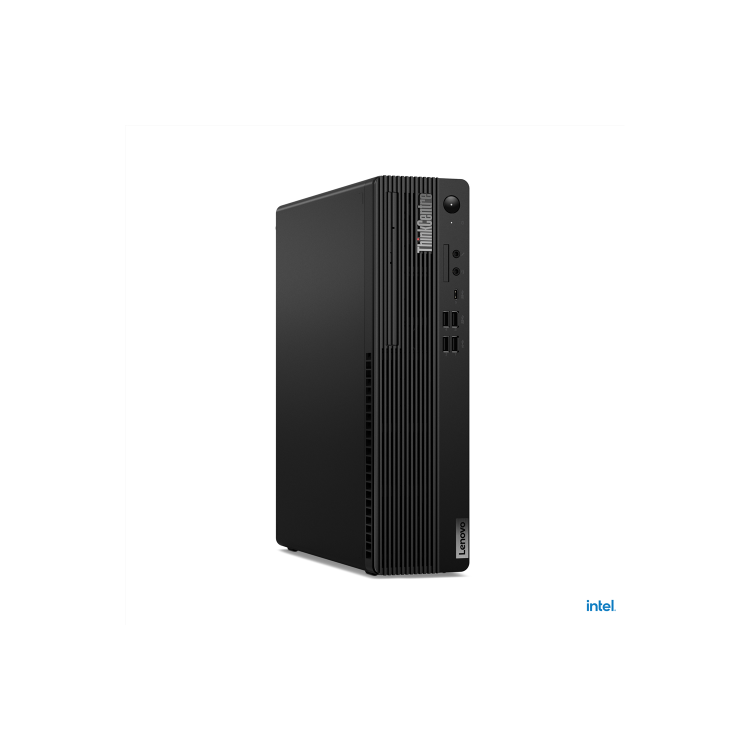

Lenovo ThinkCentre M70s Gen 4 12DT
SFF Core i5 13400 / up to 4.6 GHz
RAM 8 GB
SSD 256 GB
TCG Opal Encryption 2, NVMe, Value
DVD-Writer
UHD Graphics 730
Gigabit Ethernet
Win 11 Pro
monitor: none
keyboard: UK
black
Lenovo TopSeller
with 3 Years Lenovo Onsite Support + 1 Year Lenovo Premier Support + CO2 Offset 1 ton (2nd Gen)
Weight: 6.74 KG
Main Specifications:-
| Product Description | Lenovo ThinkCentre M70s Gen 4 - SFF Core i5 13400 2.5 GHz - 8 GB - SSD 256 GB - UK |
| Type | Personal computer - SFF |
| Bundled Services | 3 Years Lenovo Onsite Support + 1 Year Lenovo Premier Support + CO2 Offset 1 ton (2nd Gen) |
| Localisation | Language: English / region: United Kingdom |
| Processor | Intel Core i5 (13th Gen) 13400 / 2.5 GHz (up to 4.6 GHz, (10-core) |
| Cache Memory | 20 MB |
| Cache Per Processor | 20 MB |
| RAM | 8 GB (installed) / 128 GB (max) - DDR4 SDRAM - non-ECC |
| Storage Controller | SATA (SATA 6Gb/s) |
| Hard Drive | SSD 256 GB - PCI Express 4.0 x4 - M.2 2280 - TCG Opal Encryption 2, NVM Express (NVMe), Value |
| Optical Storage | DVD-Writer |
| Card Reader | 3 in 1 |
| Graphics Controller | Intel UHD Graphics 730 Shared Video Memory (UMA) |
| Networking | 1GbE |
| Keyboard | UK |
| Power | (50/60 Hz) |
| OS Provided | Windows 11 Pro |
| Colour | Black |
| Dimensions (WxDxH) | 9.25 cm x 29.77 cm x 33.95 cm |
| Weight | 5.3 kg |
| Manufacturer Selling Program | Lenovo TopSeller |
| Carbon Footprint | 596 kg carbon emissions |
| Manufacturer Warranty | Base warranty - 1 year - on-site ¦ Extended warranty - 3 years - on-site ¦ Extended warranty - 1 year - on-site - response time: next business day |
Product Features:-
Trusted security
Lenovo ThinkShield security offers a combination of hardware and software solutions to protect your ThinkCentre M70s PC. A discrete Trusted Platform Module (dTPM) 2. 0 chip encrypts passwords and data.
Expandable productivity
The ThinkCentre M70s desktop offers ample HDD and SDD expansion slots to grow along with your business. From industry-specific equipment to legacy peripherals, you can connect it all.
Outstanding manageability and durability
With a variety of pre-installed OS options to meet your customization needs, the M70s is easy to deploy and manage - in terms of both software and hardware. The ease-of-use design offers quick access to the DIMM, HDD, SDD, and ODD for hassle-free expansion.
Environmentally friendly
This PC meets high environmental standards, including TCO 9. 0. Lenovo is committed to creating eco-friendly products using recyclable, toxic-free components in every device.
Extended Specification:-
General
| Colour |
Black
|
| Built-in Devices |
Speaker
|
| Type |
Personal computer
|
| Product Form Factor |
SFF
|
| Localisation |
Language: English / region: United Kingdom
|
| Embedded Security |
Discrete Trusted Platform Module (TPM 2.0) Security Chip
|
| Bundled Services |
3 Years Lenovo Onsite Support + 1 Year Lenovo Premier Support + CO2 Offset 1 ton (2nd Gen)
|
Expansion / Connectivity
| Bays |
1 (total) / 0 (free) x external 5.25" Slim Line
1 (total) / 1 (free) x internal 3.5"
1 (total) / 1 (free) x internal 2.5"
|
| Slots |
1 (total) / 1 (free) x PCIe 4.0 x16 - full-height
1 (total) / 1 (free) x PCIe 3.0 x1 (low-profile)
1 (total) / 1 (free) x M.2 Card (for WLAN)
1 (total) / 0 (free) x M.2 Card (for SSD)
|
| Interfaces |
1 x USB-C 3.2 Gen 1 (1 in front) (data transfer, 15W charging)
2 x USB 3.2 Gen 1 (2 in front)
2 x USB 3.2 Gen 2 (2 in front)
1 x headphones/microphone (1 in front)
1 x microphone (1 in front)
1 x LAN (Gigabit Ethernet)
1 x audio line-out
1 x HDMI
2 x DisplayPort 1.4a
4 x USB 2.0
|
Manufacturer Warranty
| Service & Support |
Base warranty - 1 year - on-site
Extended warranty - 3 years - on-site
Extended warranty - 1 year - on-site - response time: next business day
|
RAM
| Configuration Features |
1 x 8 GB
|
| Effective Memory Speed |
3200 MHz
|
| Rated Memory Speed |
3200 MHz
|
| Features |
Unbuffered, dual channel memory architecture
|
| Form Factor |
DIMM 288-pin
|
| Technology |
DDR4 SDRAM - non-ECC
|
| Installed Size |
8 GB (installed) / 128 GB (max)
|
| Slots |
4 (Total) / 3 (empty)
|
Networking
| Data Link Protocol |
Ethernet, Fast Ethernet, Gigabit Ethernet
|
| Features |
Wake on LAN (WoL)
|
| Ethernet Controller |
Intel I219-LM
|
Miscellaneous
| Theft/Intrusion Protection |
Security lock slot (cable lock sold separately), padlock loop
|
| Security Slot Type |
Kensington security slot
|
| Compliant Standards |
RoHS, Energy-Related Products (ErP) Lot 3, TCG Certified, TCO Certified 9.0
|
| Manufacturer Selling Program |
Lenovo TopSeller
|
Power
| Device Type |
Power supply
|
| Power Provided |
260 Watt
|
| Efficiency |
90%
|
| Voltage Required |
AC 100-240 V (50/60 Hz)
|
Environmental Parameters
| Min Operating Temperature |
5 °C
|
| Max Operating Temperature |
35 °C
|
| Humidity Range Operating |
20 - 80%
|
Storage Controller
| Type |
1 x SATA
|
| Controller Interface Type |
SATA 6Gb/s
|
Cache Memory:-
| Installed Size |
20 MB
|
| Cache Per Processor |
20 MB
|
Optical Storage:-
| Type |
DVD±RW DVD-Writer - SATA
|
Operating System / Software
| OS Provided |
Windows 11 Pro English
|
Monitor
| Monitor Type |
None.
|
Graphics Controller
| Max Monitors Supported |
3
|
| Video Interfaces |
HDMI, DisplayPort
|
| Graphics Processor |
Intel UHD Graphics 730 Shared Video Memory (UMA)
|
Audio Output
| Compliant Standards |
High Definition Audio
|
Hard Drive
| Capacity |
1 x 256 GB
|
| Type |
SSD - M.2 2280
|
| Interface Type |
PCI Express 4.0 x4
|
| Features |
TCG Opal Encryption 2, NVM Express (NVMe), Value
|
Input Device
| Type |
Mouse, keyboard
|
Dimensions & Weight
| Weight |
5.3 kg
|
| Width |
9.25 cm
|
| Height |
33.95 cm
|
| Depth |
29.77 cm
|
Dimensions & Weight (Shipping)
| Shipping Weight |
7.6 kg
|
| Shipping Height |
53 cm
|
| Shipping Width |
19.5 cm
|
| Shipping Depth |
39.5 cm
|
Keyboard
| Interface |
USB
|
| Localization & Layout |
UK
|
| Keyboard Name |
Lenovo Traditional Keyboard
|
Card Reader
| Type |
3 in 1 card reader
|
| Supported Flash Memory Cards |
SD Memory Card, SDHC Memory Card, SDXC Memory Card
|
Mouse
| Interface |
USB
|
| Mouse Name |
Lenovo Calliope Mouse
|
Processor / Chipset
| CPU Qty |
1
|
| Max CPU Qty |
1
|
| Number of Cores |
10-core
|
| Clock Speed |
2.5 GHz (P-core) / 1.8 GHz (E-core)
|
| Chipset Type |
Intel Q670
|
| Max Turbo Speed |
4.6 GHz (P-core) / 3.3 GHz (E-core)
|
| CPU |
Intel Core i5 (13th Gen) 13400
|
Sustainability Information
| Total CF/unit Standard Deviation (kg CO2e) |
106
|
| PAIA Version |
1.3.2
|
| Carbon Footprint |
596 kg carbon emissions
|
