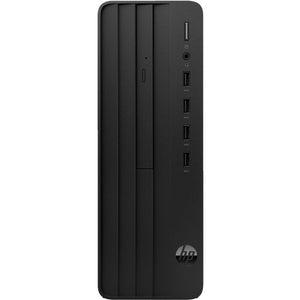

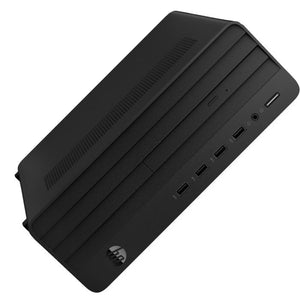

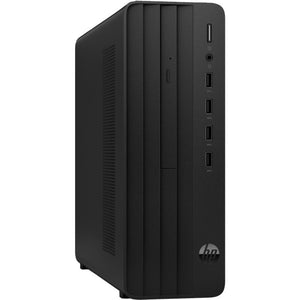

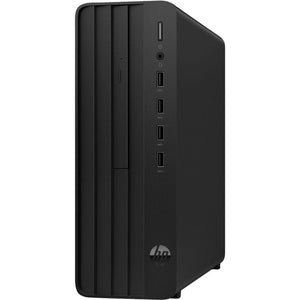

HP Pro 290 G9
SFF Core i5 13400 / up to 4.6 GHz
RAM 16 GB
SSD 512 GB
NVMe
DVD-Writer
UHD Graphics 730
Gigabit Ethernet, Bluetooth 5.3, IEEE 802.11ax (Wi-Fi 6)
Win 11 Home
monitor: none
Weight: 4.96 KG
Main Specifications:-
| Product Description | HP Pro 290 G9 - SFF Core i5 13400 2.5 GHz - 16 GB - SSD 512 GB |
| Type | Personal computer - SFF |
| Localisation | Language: English / region: United Kingdom |
| Processor | Intel Core i5 (13th Gen) 13400 / 2.5 GHz (up to 4.6 GHz, (10-core) |
| Processor Main Features | Intel Turbo Boost Technology |
| Cache Memory | 20 MB L3 Cache |
| Cache Per Processor | 20 MB |
| RAM | 16 GB (installed) / 64 GB (max) - DDR4 SDRAM |
| Hard Drive | SSD 512 GB - PCI Express - M.2 - NVM Express (NVMe) |
| Optical Storage | DVD-Writer |
| Graphics Controller | Intel UHD Graphics 730 Dynamic Video Memory Technology |
| Audio Output | Stereo |
| Networking | 1GbE, 802.11a, 802.11b/g/n, Wi-Fi 5, Bluetooth 5.3, Wi-Fi 6 |
| OS Provided | Windows 11 Home |
| Software Included | HP Support Assistant, McAfee LiveSafe, HP Setup Integrated OOBE, HP Documentation, HP Audio Switch, Xerox DocuShare (30 days trial) |
| Dimensions (WxDxH) | 9.5 cm x 30.3 cm x 27 cm |
| Weight | 4.2 kg |
| Environmental Standards | ENERGY STAR Qualified |
| Manufacturer Warranty | Limited warranty - parts and labour - 1 year - on-site |
Product Features:-
Powered up processing
Easily manage your daily business with an Intel Core i5 processor, powerful memory, drives, and graphics.
Expansion for the future
Two bays and two full-height slots provide expandability for the future.
Help keep data safe
Help protect your investment and your data with firmware TPM, HP drive lock, and a physical security lock slot.
Extended Specification:-
General
| Type |
Personal computer
|
| Product Form Factor |
SFF
|
| Embedded Security |
Trusted Platform Module (TPM 2.0) Security Chip
|
| Localisation |
Language: English / region: United Kingdom
|
Expansion / Connectivity
| Bays |
1 (total) / 0 (free) x external 5.25" Slim Line
1 (total) / 1 (free) x internal 3.5"
|
| Interfaces |
1 x headphones/microphone
4 x USB 3.2 Gen 1
4 x USB 2.0
1 x audio line-in
1 x audio line-out
1 x HDMI
1 x VGA
1 x LAN (Gigabit Ethernet)
|
| Slots |
1 (total) / 1 (free) x PCIe 4.0 x16
1 (total) / 1 (free) x PCIe 3.0 x1
1 (total) / 0 (free) x M.2 Card - 2230 (for WLAN)
1 (total) / 0 (free) x M.2 Card - 2242/2280 (for internal storage)
|
Manufacturer Warranty
| Service & Support |
Limited warranty - parts and labour - 1 year - on-site
|
RAM
| Configuration Features |
1 x 16 GB
|
| Effective Memory Speed |
3200 MHz
|
| Rated Memory Speed |
3200 MHz
|
| Installed Size |
16 GB (installed) / 64 GB (max)
|
| Technology |
DDR4 SDRAM
|
| Form Factor |
DIMM 288-pin
|
| Slots |
2 (Total) / 1 (empty)
|
Networking
| Wireless LAN Supported |
Yes
|
| Remote Management Protocol |
SNMP 2
|
| Compliant Standards |
Wi-Fi CERTIFIED
|
| Interface (Bus) Type |
PCI Express Mini Card (M.2)
|
| Features |
Wake on LAN (WoL), ACPI support, dual stream (2x2)
|
| Wireless NIC |
Realtek RTL8852BE
|
| Data Link Protocol |
Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Bluetooth 5.3, IEEE 802.11ax (Wi-Fi 6)
|
Miscellaneous
| Security Slot Type |
Kensington security slot
|
| Compliant Standards |
CSA, UL, RoHS, ETS 300 826, WEEE, ETS 300 328, FCC CFR47 Part 15 C, LVD, CECP, SEPA, IEC 950, ErP Lot 3 2013 Ready, Japan PC Green Label, Taiwan Green Mark, Korea Eco-Label
|
| Theft/Intrusion Protection |
Security lock slot (cable lock sold separately), padlock loop, integrated accessories cable lock
|
Power
| Device Type |
Power supply
|
| Power Provided |
180 Watt
|
| Efficiency |
90%
|
| Power Factor Correction |
Yes (active)
|
Environmental Parameters
| Min Operating Temperature |
0 °C
|
| Max Operating Temperature |
40 °C
|
| Humidity Range Operating |
10 - 90% RH (non-condensing)
|
Cache Memory:-
| Cache Per Processor |
20 MB
|
| Installed Size |
L3 Cache - 20 MB
|
Optical Storage
| Type |
DVD-Writer
|
Operating System / Software:-
| OS Provided |
Windows 11 Home English
|
| Software |
HP Support Assistant, McAfee LiveSafe, HP Setup Integrated OOBE, HP Documentation, HP Audio Switch, Xerox DocuShare (30 days trial)
|
Monitor
| Monitor Type |
None.
|
Graphics Controller
| HDCP Compatible |
Yes
|
| Video Interfaces |
VGA, HDMI
|
| Graphics Processor |
Intel UHD Graphics 730 Dynamic Video Memory Technology
|
Audio Output
| Sound Output Mode |
Stereo
|
| Max Sampling Rate |
192 kHz
|
| Compliant Standards |
High Definition Audio
|
Hard Drive
| Interface Type |
PCI Express
|
| Capacity |
1 x 512 GB
|
| Features |
NVM Express (NVMe)
|
| Type |
SSD - M.2
|
Input Device
| Type |
No keyboard, no mouse
|
Dimensions & Weight
| Height |
27 cm
|
| Width |
9.5 cm
|
| Weight |
4.2 kg
|
| Depth |
30.3 cm
|
Dimensions & Weight (Shipping)
| Shipping Weight |
6 kg
|
| Shipping Width |
49.8 cm
|
| Shipping Height |
34.6 cm
|
| Shipping Depth |
19.6 cm
|
Processor / Chipset
| CPU Qty |
1
|
| Max CPU Qty |
1
|
| CPU Upgradability |
Upgradable
|
| L2 cache |
9.5 MB
|
| Processor Main Features |
Intel Turbo Boost Technology
|
| Number of Cores |
10-core
|
| Chipset Type |
Intel H670
|
| Clock Speed |
2.5 GHz (P-core) / 1.8 GHz (E-core)
|
| Max Turbo Speed |
4.6 GHz (P-core) / 3.3 GHz (E-core)
|
| CPU |
Intel Core i5 (13th Gen) 13400
|
Sustainability Information
| ENERGY STAR Certified |
Yes
|
