HP Elite t755
| Product Description | HP Elite t755 - SFF Ryzen Embedded V2546 3 GHz - 8 GB - SSD 256 GB - UK |
| Type | Thin client - SFF |
| Localisation | Language: English / region: United Kingdom |
| Processor | 1 x AMD Ryzen Embedded V2546 / 3 GHz (up to 3.95 GHz, (6-core) |
| Processor Main Features | AMD Memory Guard |
| Cache Memory | 8 MB L3 Cache |
| Cache Per Processor | 8 MB |
| RAM | 8 GB (installed) / 32 GB (max) - DDR4 SDRAM - non-ECC |
| Hard Drive | SSD 256 GB - PCI Express - M.2 - NVM Express (NVMe) |
| Optical Storage | No optical drive |
| Graphics Controller | AMD Radeon Graphics |
| Networking | 1GbE |
| Keyboard | UK |
| Power | (50/60 Hz) |
| OS Provided | Windows 10 IoT Enterprise 2021 LTSC |
| Software Included | HP ThinUpdate, Microsoft SCCM/EDM-agent, HP Write Manager, HP USB Port Manager, HP Device Manager, HP Easy Shell, Microsoft Edge |
| Dimensions (WxDxH) | 5 cm x 21 cm x 21 cm |
| Weight | 1.4 kg |
| Environmental Standards | ENERGY STAR Qualified |
| Manufacturer Warranty | Limited warranty - parts and labour - 1 year |

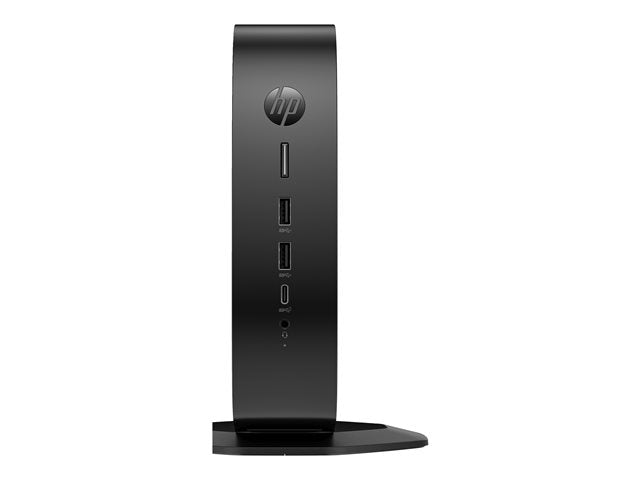

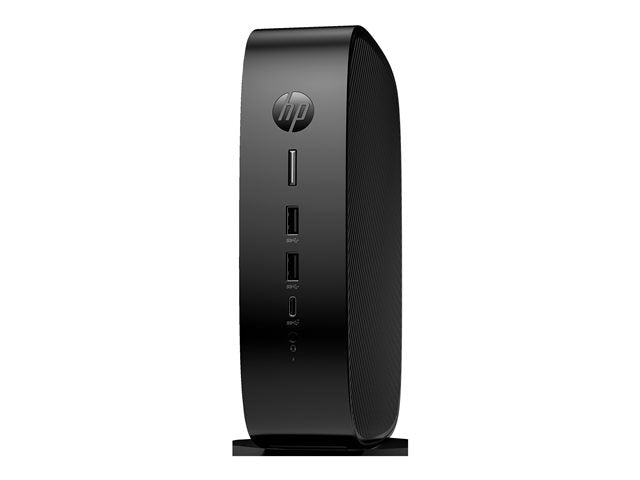

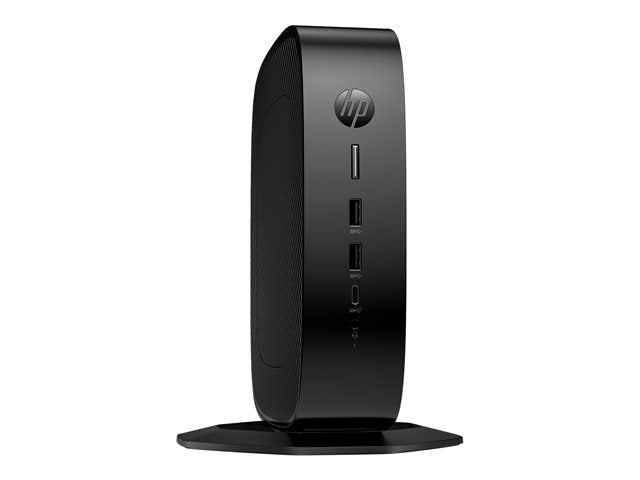

Compact design
The HP Elite t755 features a small form factor chassis, making it an ideal choice for workspaces where space is at a premium. Its sleek, compact design allows for easy placement on or under desks, ensuring a clutter-free work environment.
Powerful performance
Equipped with a 6-core AMD Ryzen Embedded processor and 8 MB of L3 cache, the HP Elite t755 delivers robust performance for demanding applications. With a clock speed of 3 GHz and a max turbo speed of 3. 95 GHz, it ensures smooth multitasking and efficient handling of complex tasks.
Enhanced connectivity
This desktop offers a wide range of connectivity options, including USB-C 3. 2 Gen 2 and DisplayPort 1. 2 interfaces, facilitating easy connection to a variety of peripherals and devices. The inclusion of both front and rear ports enhances accessibility and user convenience.
Reliable security
With the Trusted Platform Module (TPM 2. 0) security chip, the HP Elite t755 provides hardware-based encryption keys to help secure your data, email, and user credentials. This embedded security feature adds an extra layer of protection against data theft and unauthorized access.
| Built-in Devices |
Speaker
|
| Product Form Factor |
SFF
|
| Embedded Security |
Trusted Platform Module (TPM 2.0) Security Chip
|
| Type |
Thin client
|
| Localisation |
Language: English / region: United Kingdom
|

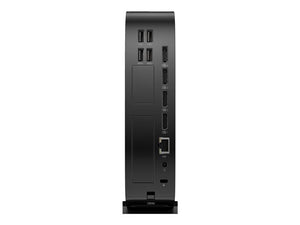

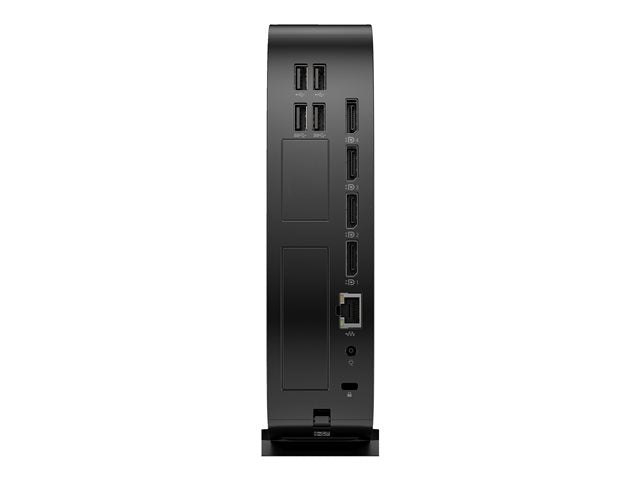

| Interfaces |
2 x USB 3.1 Gen 1 (2 front)
1 x USB-C 3.2 Gen 2 (1 front)
1 x audio line-out/line-in - mini-jack (1 front)
4 x DisplayPort 1.2 (4 rear)
2 x USB 3.2 Gen 1 (2 rear)
2 x USB 2.0 - Type A (2 rear)
1 x LAN (Gigabit Ethernet) (1 rear)
|
| Slots |
2 (total) / 1 (free) x M.2 Card (for internal storage)
1 (total) / 1 (free) x PCIe x16 - half-height (x8 mode)
|
| Service & Support |
Limited warranty - parts and labour - 1 year
|
| Configuration Features |
2 x 4 GB
|
| Installed Size |
8 GB (installed) / 32 GB (max)
|
| Effective Memory Speed |
3200 MHz
|
| Rated Memory Speed |
3200 MHz
|
| Features |
Dual channel memory architecture
|
| Technology |
DDR4 SDRAM - non-ECC
|
| Form Factor |
SO-DIMM 260-pin
|
| Slots |
2 (Total) / 0 (empty)
|
| Data Link Protocol |
Ethernet, Fast Ethernet, Gigabit Ethernet
|
| Theft/Intrusion Protection |
Security lock slot (cable lock sold separately)
|
| Security Slot Type |
Kensington security slot
|
| VESA Mounting Interface |
VESA, 100 x 100 mm
|
| Compliant Standards |
RoHS2, Energy-Related Products (ErP) Lot 3, CECP, SEPA, HP GSE, WEEE, low halogen, UL, CB, GS, CCC, BSMI, FCC Class B certified, CISPR Class B, EN, VCCI Class B, ICES Class B, AS/NZS, CNS, KCC Class B, EN60601-1-2, FIPS 140-2
|
| Device Type |
Power adapter
|
| Power Provided |
90 Watt
|
| Power Device Name |
HP Smart AC Adapter
|
| Voltage Required |
AC 100-240 V (50/60 Hz)
|
| Max Operating Temperature |
40 °C
|
| Min Operating Temperature |
10 °C
|
| Humidity Range Operating |
10 - 90% (non-condensing)
|
| Cache Per Processor |
8 MB
|
| Installed Size |
L3 Cache - 8 MB
|
| Type |
No optical drive
|
| OS Provided |
Windows 10 IoT Enterprise 2021 LTSC English
|
| Software |
HP ThinUpdate, Microsoft SCCM/EDM-agent, HP Write Manager, HP USB Port Manager, HP Device Manager, HP Easy Shell, Microsoft Edge
|
| Monitor Type |
None.
|
| Video Interfaces |
DisplayPort
|
| Graphics Processor |
AMD Radeon Graphics
|
| Interface Type |
PCI Express
|
| Capacity |
1 x 256 GB
|
| Features |
NVM Express (NVMe)
|
| Type |
SSD - M.2
|
| Type |
Keyboard, mouse
|
| Width |
5 cm
|
| Depth |
21 cm
|
| Height |
21 cm
|
| Weight |
1.4 kg
|
| Shipping Weight |
3.798 kg
|
| Interface |
USB
|
| Localization & Layout |
UK
|
| Keyboard Name |
HP 320K
|
| Interface |
USB
|
| Mouse Name |
HP 320M
|
| CPU Qty |
1
|
| Max CPU Qty |
1
|
| L2 cache |
3 MB
|
| CPU Upgradability |
Not upgradable
|
| Clock Speed |
3 GHz
|
| Number of Cores |
6-core
|
| Processor Main Features |
AMD Memory Guard
|
| Max Turbo Speed |
3.95 GHz
|
| CPU |
AMD Ryzen Embedded V2546
|
