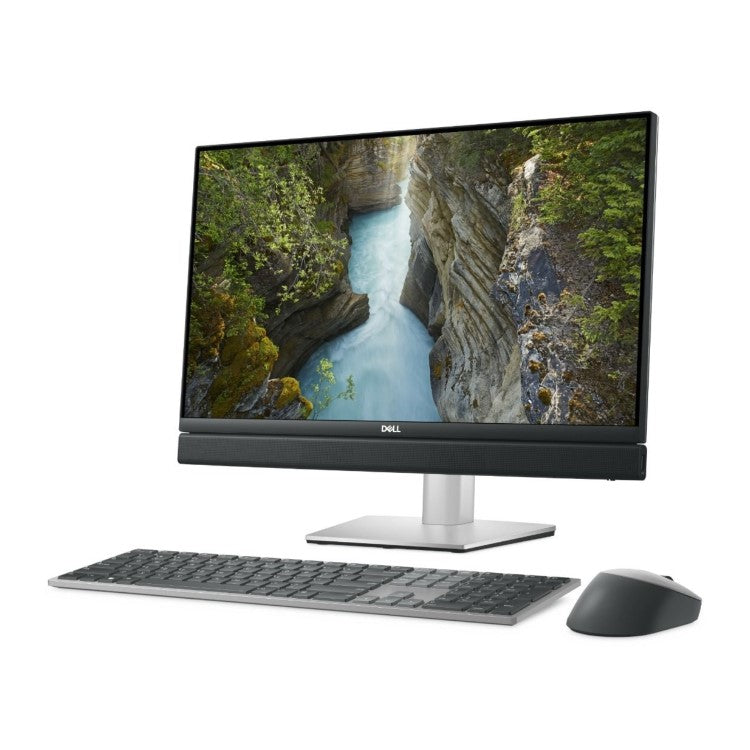

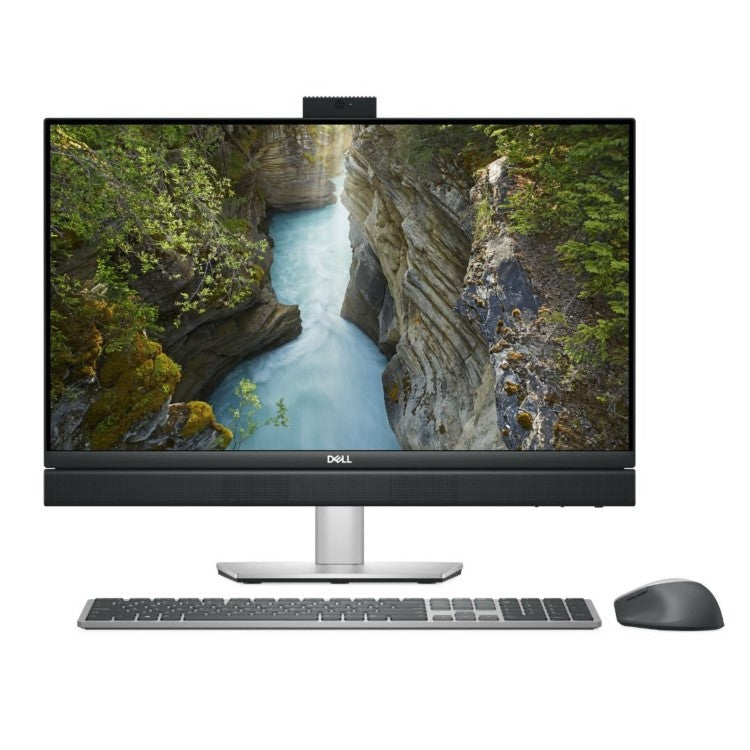

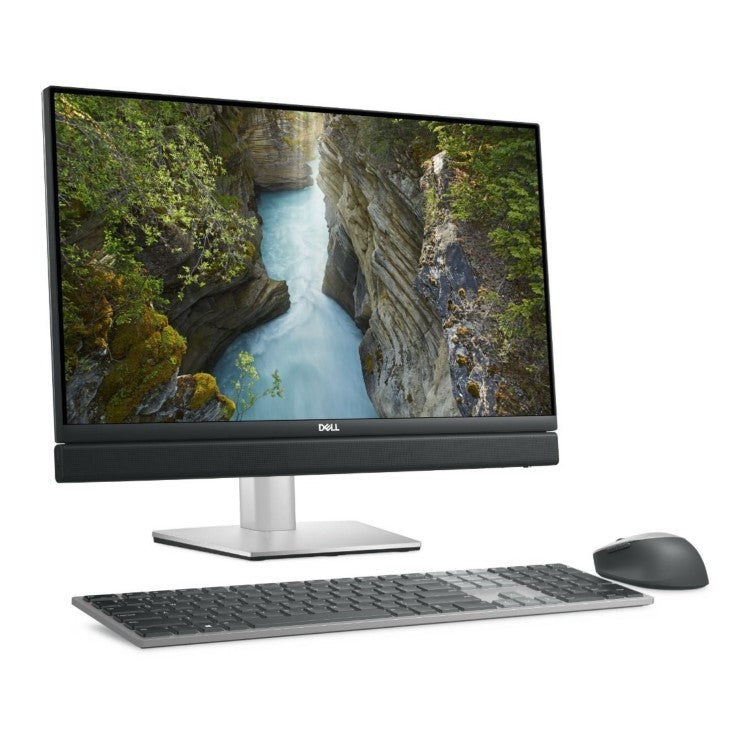

Dell OptiPlex 7420 All In One
All-in-one Core i5 i5-14500T / up to 4.8 GHz Energy Efficient
RAM 16 GB
SSD 512 GB
NVMe, Class 35
UHD Graphics 770
Gigabit Ethernet, Bluetooth, IEEE 802.11ax (Wi-Fi 6E)
Win 11 Pro
monitor: LED 23.81" 1920 x 1080 (Full HD) @ 60 Hz
black
BTS
with 1 Year Basic Onsite (AT, DE
2 Years)
Weight: 12.26 KG
Main Specifications:-
| Product Description | Dell OptiPlex 7420 All In One - all-in-one Core i5 i5-14500T 1.7 GHz - 16 GB - SSD 512 GB - LED 23.81" |
| Type | Personal computer - all-in-one |
| Bundled Services | 1 Year Basic Onsite (AT, DE - 2 Years) |
| Processor | Intel Core i5 (14th Gen) i5-14500T / 1.7 GHz (up to 4.8 GHz, Energy Efficient (14-core) |
| Cache Memory | 24 MB |
| Cache Per Processor | 24 MB |
| RAM | 16 GB (installed) / 64 GB (max) - DDR5 SDRAM |
| Hard Drive | SSD 512 GB - PCI Express 4.0 x4 - M.2 2230 - NVM Express (NVMe), Class 35 |
| Optical Storage | No optical drive |
| Card Reader | Yes |
| Monitor | 23.81" - LED - 1920 x 1080 (Full HD) @ 60 Hz - 92 ppi |
| Graphics Controller | Intel UHD Graphics 770 Shared Video Memory (UMA) |
| Camera | Yes |
| Audio Output | Stereo |
| Networking | 1GbE, Bluetooth, 802.11a, 802.11b/g/n, Wi-Fi 5, Wi-Fi 6E |
| Power | (50/60 Hz) |
| OS Provided | Windows 11 Pro |
| Software Included | Intel Rapid Storage Technology, Intel Connectivity Performance Suite, Dell Additional Softwares, No Microsoft Office License Included - 30 day Trial Offer Only |
| Colour | Black |
| Dimensions (WxDxH) | 54 cm x 5.79 cm x 35.43 cm |
| Weight | 5.61 kg |
| Pricing Type | Build To Stock (BTS) |
| Environmental Standards | ENERGY STAR Qualified |
| Carbon Footprint | 355 kg carbon emissions |
Product Features:-
Intelligent Audio
Adaptive Audio adjusts speakers and mics to user's proximity while Intelligent Audio provides automatic noise cancellation based on environment.
FHD HDR camera
High dynamic range (HDR) technology automatically adjusts clarity in any lighting environment including low light, direct sunlight or high contrast lighting conditions with greater tonal range.
Get ahead
Dell Optimizer enables Presence Detection with Wake on Approach so you can get to work faster than ever.
Stay secure
Protect your desktop and data with Look Away Detect and Onlooker Detection, or Walk-away Lock when you leave your workspace.
Uninterrupted workdays
Input Guardian is an innovative UPS feature to ensure a stable power supply.
Modern management and reliability
OptiPlex invests in reliable product experiences designed with quality-tested, sustainable components built to last and perform.
Extended Specification:-
General
| Colour |
Black
|
| Type |
Personal computer
|
| Embedded Security |
Trusted Platform Module (TPM 2.0) Security Chip
|
| Product Form Factor |

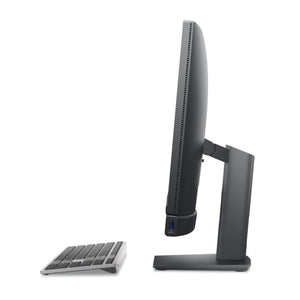

All-in-one - with height-adjustable stand
|
| Bundled Services |
1 Year Basic Onsite (AT, DE - 2 Years)
|
Expansion / Connectivity
| Slots |
1 (total) / 0 (free) x M.2 Card - 2230/2280
1 (total) / 0 (free) x M.2 Card - 2230
|

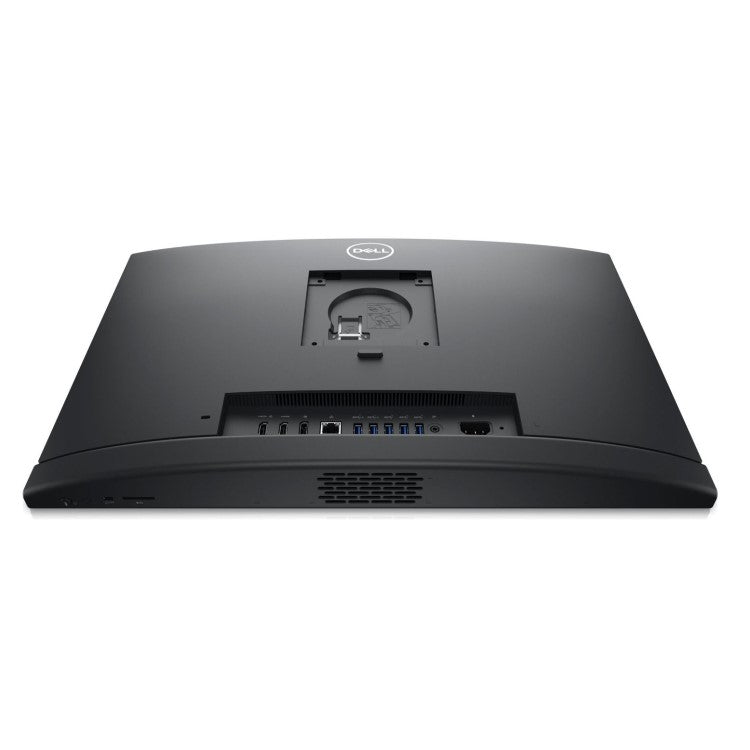

| Interfaces |
1 x LAN (Gigabit Ethernet)
1 x USB 3.2 Gen 2 (PowerShare)
1 x USB-C 3.2 Gen 2
2 x USB 3.2 Gen 1
2 x USB 2.0 (supports SmartPower On)
1 x audio line-out
1 x headphones/microphone
1 x DisplayPort 1.4a
|
RAM
| Configuration Features |
1 x 16 GB
|
| Installed Size |
16 GB (installed) / 64 GB (max)
|
| Slots |
2 (Total) / 1 (empty)
|
| Technology |
DDR5 SDRAM
|
| Form Factor |
SO-DIMM 262-pin
|
Networking
| Wireless LAN Supported |
Yes
|
| Interface (Bus) Type |
M.2 2230
|
| Ethernet Controller |
Intel I219-LM
|
| Features |
Dual stream (2x2)
|
| Compliant Standards |
IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax
|
| Wireless NIC |
Intel Wi-Fi 6E AX 211
|
| Data Link Protocol |
Ethernet, Fast Ethernet, Gigabit Ethernet, Bluetooth, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6E)
|
Miscellaneous
| Pricing Type |
Build To Stock (BTS)
|
| Theft/Intrusion Protection |
Security lock slot (cable lock sold separately), chassis intrusion switch
|
| Security Slot Type |
Kensington security slot
|
Power
| Device Type |
Power adapter
|
| Power Provided |
130 Watt
|
| Voltage Required |
AC 100-240 V (50/60 Hz)
|
Environmental Parameters
| Min Operating Temperature |
0 °C
|
| Max Operating Temperature |
35 °C
|
| Humidity Range Operating |
10 - 90% (non-condensing)
|
Cache Memory
| Installed Size |
24 MB
|
| Cache Per Processor |
24 MB
|
Optical Storage
| Type |
No optical drive
|
Operating System / Software
| OS Provided |
Windows 11 Pro Dutch / English / French / German / Italian
|
| Software |
Intel Rapid Storage Technology, Intel Connectivity Performance Suite, Dell Additional Softwares, No Microsoft Office License Included - 30 day Trial Offer Only
|
Monitor:-
| Pixel Pitch |
0.27 mm
|
| V-Sync Rate at Max Res. |
60 Hz
|
| Widescreen Display |
Yes
|
| Response Time |
14 ms
|
| Image Contrast Ratio |
1000:1
|
| Pixel Density (ppi) |
92
|
| Horizontal Viewing Angle |
+89 / -89
|
| Vertical Viewing Angle |
+89 / -89
|
| Monitor Type |
LED - IPS
|
| Image Brightness |
250 cd/m²
|
| Native Resolution |
1920 x 1080 (Full HD)
|
| Diagonal Size |
23.81"
|
| Colour Gamut |
99% sRGB
|
| Monitor Features |
Anti-glare, 3-sided bezeless, Dell ComfortView Plus
|
Graphics Controller
| Video Interfaces |
DisplayPort
|
| Graphics Processor |
Intel UHD Graphics 770 Shared Video Memory (UMA)
|
Audio Output
| Sound Output Mode |
Stereo
|
| Speakers Included |
2 x right / left channel
|
| Compliant Standards |
High Definition Audio
|
Hard Drive
| Capacity |
1 x 512 GB
|
| Features |
NVM Express (NVMe), Class 35
|
| Type |
SSD - M.2 2230
|
| Interface Type |
PCI Express 4.0 x4
|
Input Device
| Type |
Mouse (on selected markets only), keyboard (on selected markets only)
|
Audio Input
| Type |
2 microphones
|
Camera
| Camera |
Yes
|
| Resolution |
1920 x 1080
|
| Resolution (MP) |
2.07 Megapixel
|
| Features |
HDR (High Dynamic Range), retractable, 30 frames per second, RGB camera, 82 degrees
|
Dimensions & Weight
| Width |
54 cm
|
| Depth |
5.79 cm
|
| Weight |
5.61 kg
|
| Height |
35.43 cm
|
Keyboard
| Keyboard Name |
Dell KM5221W Pro Wireless Keyboard and Mouse Combo
|
Card Reader
| Type |
Card reader
|
| Supported Flash Memory Cards |
SD Memory Card, SDHC Memory Card, SDXC Memory Card
|
Processor / Chipset
| CPU Qty |
1
|
| Max CPU Qty |
1
|
| Power Efficiency |
Energy Efficient
|
| Number of Cores |
14-core
|
| Chipset Type |
Intel Q670
|
| Clock Speed |
1.7 GHz (P-core) / 1.2 GHz (E-core)
|
| Max Turbo Speed |
4.8 GHz (P-core) / 3.4 GHz (E-core)
|
| CPU |
Intel Core i5 (14th Gen) i5-14500T
|
Sustainability Information
| EOL (kg CO2e) |
0
|
| ENERGY STAR Certified |
Yes
|
| Logistics (kg CO2e) |
49
|
| Use (kg CO2e) |
113
|
| Total Carbon w/o Use Phase (kg CO2e) |
242
|
| Manufacturing (kg CO2e) |
193
|
| Total CF/unit Standard Deviation (kg CO2e) |
93
|
| Carbon Footprint |
355 kg carbon emissions
|
| PAIA Version |
1.4.0, 2024
|
