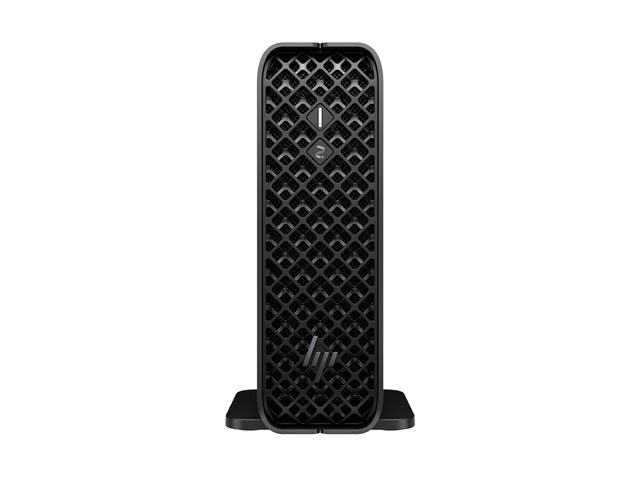

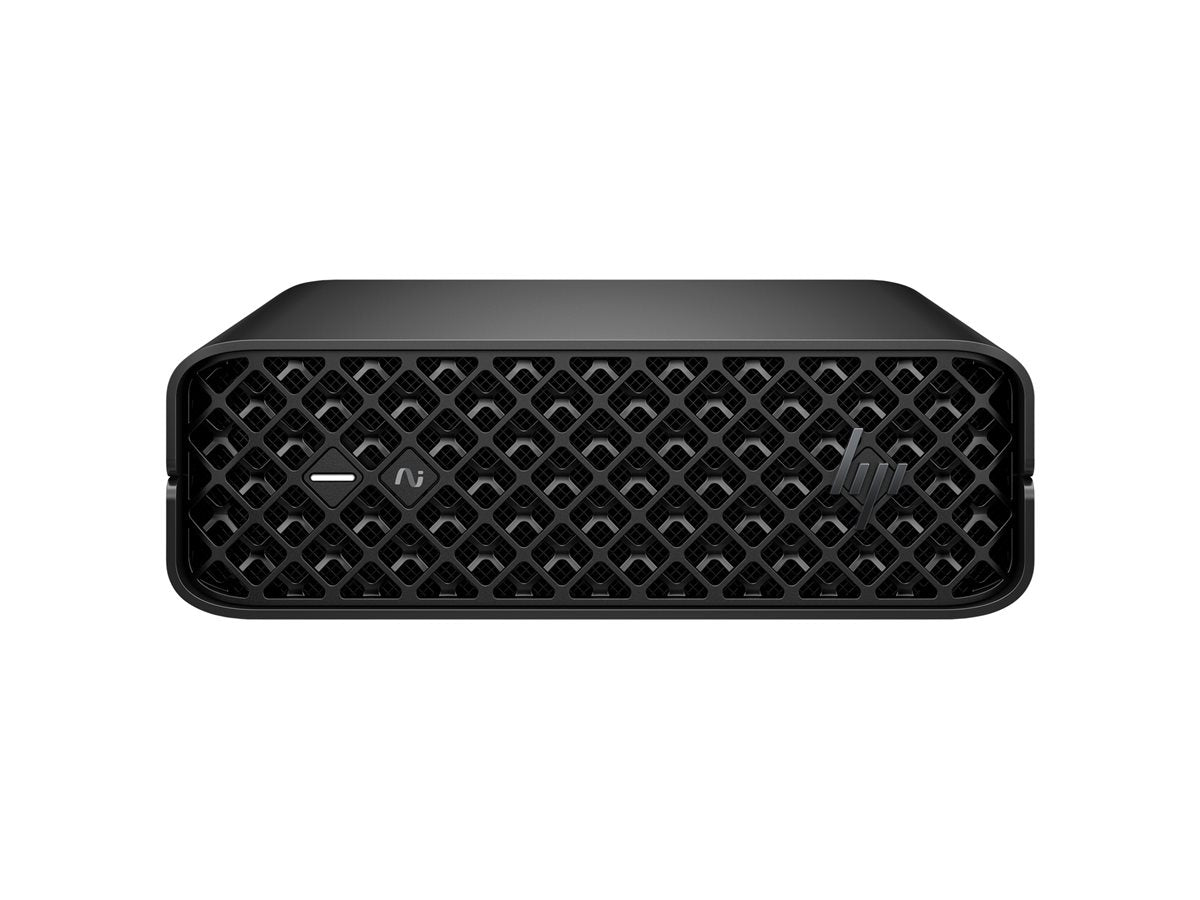

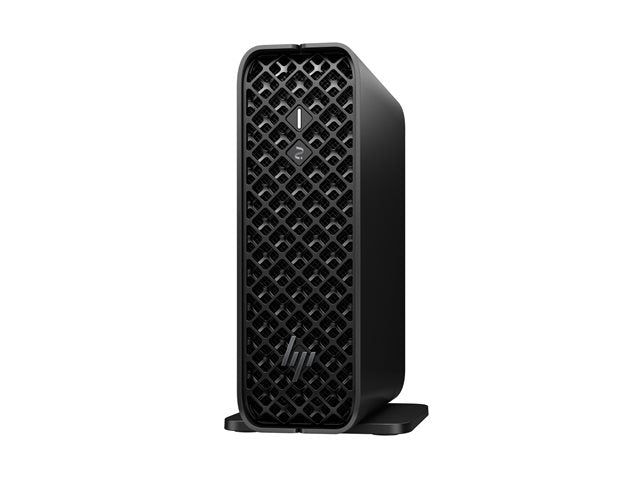

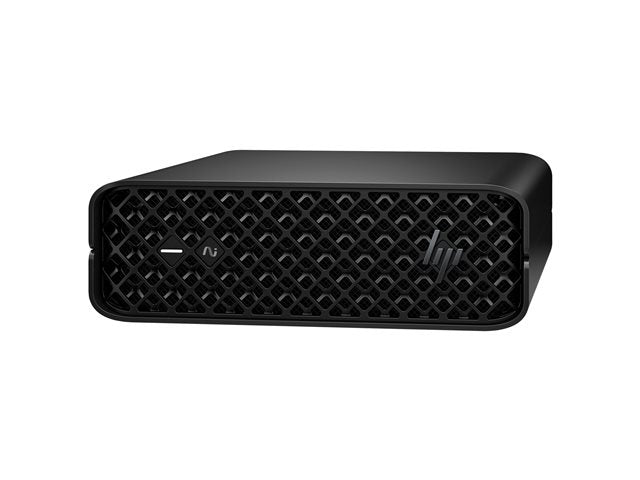

HP Workstation Z2 G1i
Mini 5U
1 x Core Ultra 7 265K / up to 5.5 GHz
RAM 32 GB
SSD 1 TB
NVMe
RTX 2000 Ada
Gigabit Ethernet, IEEE 802.11ax (Wi-Fi 6), Bluetooth 5.4, IEEE 802.11be (Wi-Fi 7)
Win 11 Pro
monitor: none
keyboard: UK
black
Main Specifications:-
| Product Description | HP Workstation Z2 G1i - mini - AI PC, AI Workstation - Core Ultra 7 265K 3.9 GHz - 32 GB - SSD 1 TB - UK |
| Type | Workstation - mini - AI PC, AI Workstation |
| Height (Rack Units) | 5U |
| Localisation | Language: English / region: United Kingdom |
| Processor | 1 x Intel Core Ultra 7 (Series 2) 265K / 3.9 GHz (up to 5.5 GHz, (20-core) |
| Processor Socket | LGA1851 Socket |
| Processor Main Features | Intel Turbo Boost Technology |
| Neural Processor Unit (NPU) | Intel AI Boost - up to 13 TOPS |
| Cache Memory | 30 MB L3 Cache |
| Cache Per Processor | 30 MB |
| RAM | 32 GB (installed) / 128 GB (max) - DDR5 SDRAM - non-ECC |
| Storage Controller | RAID (NVM Express) |
| Hard Drive | SSD 1 TB - PCI Express 4.0 - M.2 - NVM Express (NVMe) |
| Optical Storage | No optical drive |
| Multi-GPU Configuration | 1 single GPU card / integrated GPU |
| Graphics Controller | PCIe 4.0 x8 - NVIDIA RTX 2000 Ada / Intel Graphics - up to 8 TOPS |
| Video Memory | 16 GB GDDR6 SDRAM |
| Networking | 1GbE, 802.11a, 802.11b/g/n, Wi-Fi 5, Wi-Fi 6, Bluetooth, Wi-Fi 7 |
| Keyboard | UK |
| Power | (50/60 Hz) |
| OS Provided | Windows 11 Pro |
| Software Included | HP Support Assistant, HP Secure Erase, HP Image Assistant, HP Documentation, HP Notifications, HP Sure Click, HP Manageability Integration Kit, HP Sure Admin, WPS Office, HP Client Security Manager Gen6, HP BIOSphere Gen6, myHP, HP Desktop Support Utilities, HP Sure Recover Gen4, HP Performance Advisor 3.0, HP Sure Sense Gen2, HP Sure Run Gen5, HP PC Hardware Diagnostics Windows, HP UEFI BIOS Certification level 2.7B |
| Colour | Black |
| Dimensions (WxDxH) | 21.1 cm x 21.8 cm x 6.9 cm |
| Weight | 2.4 kg |
| Manufacturer Selling Program | HP Smart Buy |
| Environmental Standards | ENERGY STAR Qualified EPEAT Gold |
Product Features:-
Robust processing capabilities
The HP Workstation Z2 G1i features a 20-core Intel Core Ultra 7 processor, allowing for efficient multitasking and high performance in resource-intensive applications.
Enhanced security features
Equipped with a Trusted Platform Module (TPM 2. 0) security chip, this workstation ensures secure data management and protection against unauthorized access.
Versatile connectivity options
Multiple data link protocols such as Gigabit Ethernet and Fast Ethernet provide robust networking capabilities, supporting efficient data transfer and connectivity.
Environmentally efficient
Designed to operate in a wide range of temperatures and humidity, the workstation functions effectively under various conditions, ensuring reliability in diverse environments.
Expandable storage options
With PCIe slots available for internal storage expansion, this workstation supports efficient storage upgrades, enhancing system performance.
Extended Specification:-
General
| Colour |
Black
|
| Built-in Devices |
Speaker
|
| Type |
Workstation
|
| Embedded Security |
Trusted Platform Module (TPM 2.0) Security Chip
|
| Localisation |
Language: English / region: United Kingdom
|
| Sensors |
HP Tamper Lock
|
| Product Form Factor |
Mini - 5U
|
| AI Level |
AI PC, AI Workstation
|
Expansion / Connectivity
| Slots |
1 (total) / 0 (free) x PCIe 5.0 x16 (x8 mode, full-length, low-profile)
2 (total) / 1 (free) x M.2 Card - 2280 (PCIe 5.0 x4 mode (for internal storage))
1 (total) / 0 (free) x M.2 Card - 2230 (PCIe 4.0 x1 mode and Intel CNVi wireless module)
|
| Interfaces |
1 x headphones/microphone (1 side) (CTIA and OMTP headset support)
4 x USB 3.2 Gen 2 (1 side, 3 rear) (one of them is charging)
2 x USB-C 3.2 Gen 2x2 (2 side) (charging)
2 x DisplayPort 1.4 (2 rear)
1 x LAN (Gigabit Ethernet) - RJ-45 (1 rear)
4 x Mini DisplayPort 1.4a
|
RAM
| Configuration Features |
1 x 32 GB
|
| Slots |
2 (Total) / 1 (empty)
|
| Technology |
DDR5 SDRAM - non-ECC
|
| Form Factor |
SO-DIMM 262-pin
|
| Installed Size |
32 GB (installed) / 128 GB (max)
|
| Effective Memory Speed |
6400 MT/s
|
| Rated Memory Speed |
6400 MT/s
|
Networking
| Wireless LAN Supported |
Yes
|
| Interface (Bus) Type |
M.2 2230
|
| Ethernet Controller |
Intel I219-LM
|
| Compliant Standards |
IEEE 802.3u, IEEE 802.3i, IEEE 802.3z, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.1as, IEEE 802.3az
|
| Wireless NIC |
Intel WI-FI 7 BE200
|
| Data Link Protocol |
Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6), Bluetooth 5.4, IEEE 802.11be (Wi-Fi 7)
|
| Features |
Wake on LAN (WoL), ACPI support, auto-uplink (auto MDI/MDI-X), PXE 2.1 support, dual stream (2x2), Intel Active Management Technology (AMT) 19
|
Miscellaneous
| Manufacturer Selling Program |
HP Smart Buy
|
| Security Slot Type |
Kensington security slot
|
| Theft/Intrusion Protection |
Security lock slot (cable lock sold separately), chassis intrusion sensor
|
| Compliant Standards |
RoHS, FIPS 140-2, WEEE, CECP, low halogen
|
Power
| Device Type |
Power supply
|
| Power Provided |
280 Watt
|
| Efficiency |
89%
|
| Power Factor Correction |
Yes (active)
|
| Voltage Required |
AC 100-240 V (50/60 Hz)
|
Environmental Parameters
| Min Operating Temperature |
5 °C
|
| Max Operating Temperature |
35 °C
|
| Humidity Range Operating |
8 - 85% RH (non-condensing)
|
Storage Controller
| RAID Level |
RAID 0, RAID 1
|
| Type |
1 x RAID
|
| Controller Interface Type |
NVM Express
|
Cache Memory
| Cache Per Processor |
30 MB
|
| Installed Size |
L3 Cache - 30 MB
|
Optical Storage
| Type |
No optical drive
|
Operating System / Software:-
| OS Provided |
Windows 11 Pro English
|
| Software |
HP Support Assistant, HP Secure Erase, HP Image Assistant, HP Documentation, HP Notifications, HP Sure Click, HP Manageability Integration Kit, HP Sure Admin, WPS Office, HP Client Security Manager Gen6, HP BIOSphere Gen6, myHP, HP Desktop Support Utilities, HP Sure Recover Gen4, HP Performance Advisor 3.0, HP Sure Sense Gen2, HP Sure Run Gen5, HP PC Hardware Diagnostics Windows, HP UEFI BIOS Certification level 2.7B
|
Monitor
| Monitor Type |
None.
|
Graphics Controller
| Video Interfaces |
DisplayPort
|
| Multi-GPU Configuration |
1 single GPU card / integrated GPU
|
| Bandwidth |
224 GBps
|
| Video Memory |
16 GB GDDR6 SDRAM
|
| Interface Type |
PCIe 4.0 x8
|
| Graphics Processor |
NVIDIA RTX 2000 Ada / Intel Graphics - up to 8 TOPS
|
Audio Output
| Compliant Standards |
High Definition Audio
|
Hard Drive
| Capacity |
1 x 1 TB
|
| Features |
NVM Express (NVMe)
|
| Type |
SSD - M.2
|
| Interface Type |
PCI Express 4.0
|
Input Device
| Type |
Mouse, keyboard
|
Dimensions & Weight
| Weight |
2.4 kg
|
| Width |
21.1 cm
|
| Depth |
21.8 cm
|
| Height |
6.9 cm
|
Dimensions & Weight (Shipping)
| Shipping Weight |
5.4 kg
|
| Shipping Width |
16.9 cm
|
| Shipping Height |
29.7 cm
|
| Shipping Depth |
49.9 cm
|
Keyboard
| Localization & Layout |
UK
|
| Keyboard Name |
HP 320K
|
Mouse
| Mouse Name |
HP 320M
|
Processor / Chipset
| CPU Qty |
1
|
| Max CPU Qty |
1
|
| CPU Upgradability |
Upgradable
|
| L2 cache |
36 MB
|
| Processor Main Features |
Intel Turbo Boost Technology
|
| Number of Cores |
20-core
|
| CPU Socket |
LGA1851 Socket
|
| Clock Speed |
3.9 GHz (P-core) / 3.3 GHz (E-core)
|
| Max Turbo Speed |
5.5 GHz (P-core) / 4.6 GHz (E-core)
|
| CPU |
Intel Core Ultra 7 (Series 2) 265K
|
| Chipset Type |
Intel W880
|
