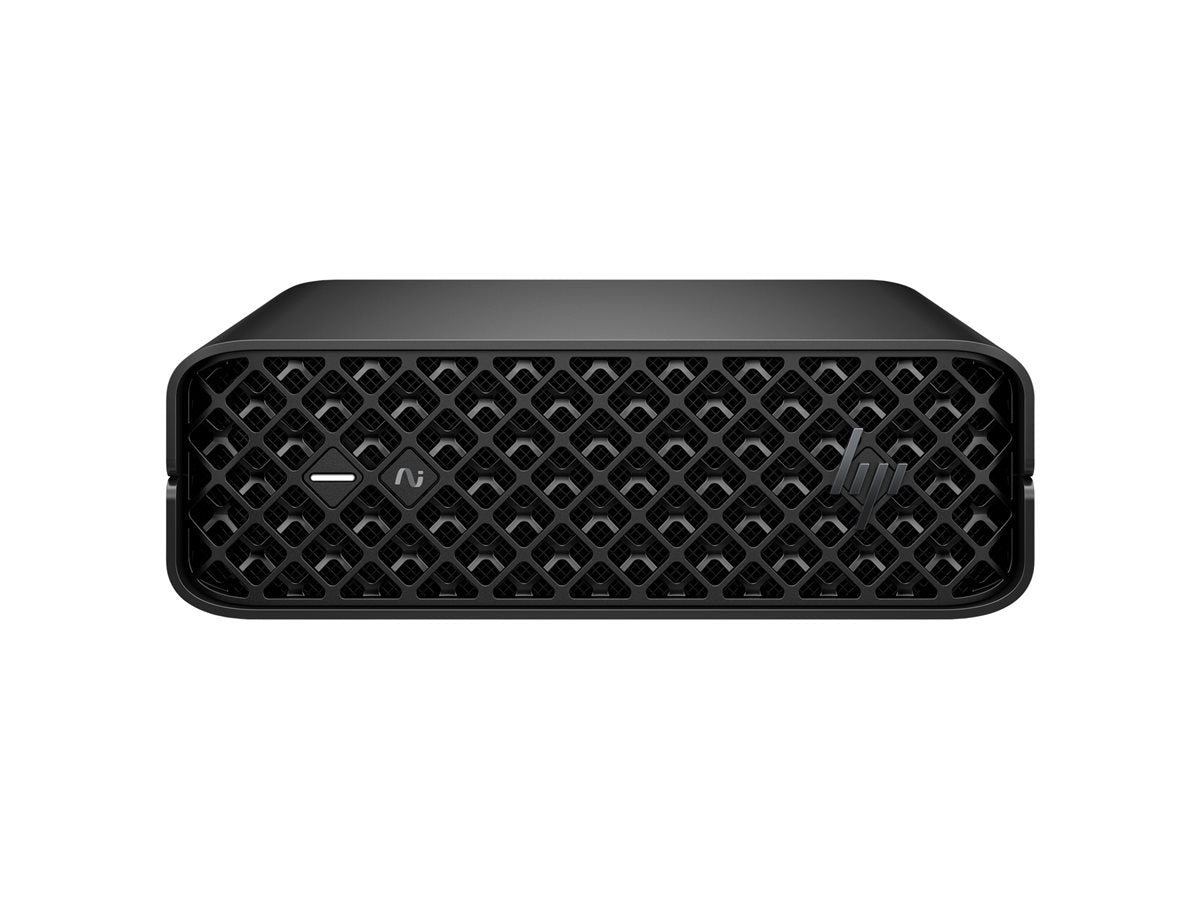

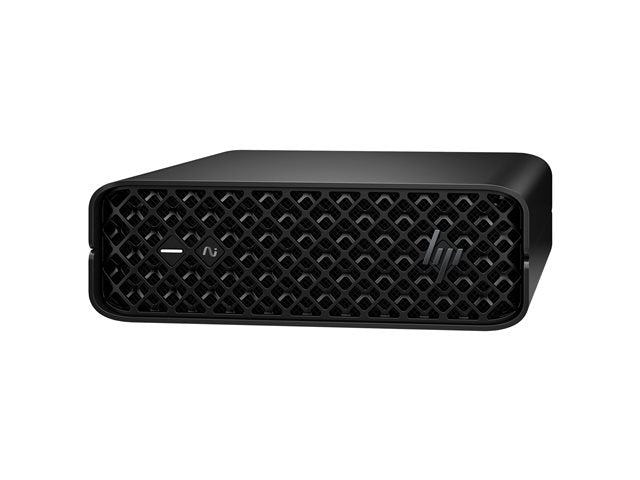

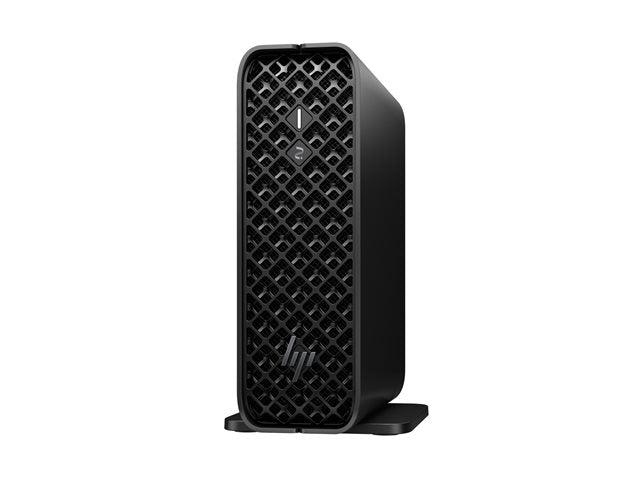

HP Workstation Z2 G1i
Mini 5U
1 x Core Ultra 9 285K / up to 5.7 GHz
RAM 64 GB
SSD 1 TB
HP Z Turbo Drive, TLC
RTX 2000 Ada
Gigabit Ethernet, IEEE 802.11ax (Wi-Fi 6), Bluetooth 5.4, IEEE 802.11be (Wi-Fi 7)
Win 11 Pro
monitor: none
keyboard: UK
black
Smart Buy
Weight: 5.64 KG
Main Specifications:-
| Product Description | HP Workstation Z2 G1i - mini - AI PC, AI Workstation - Core Ultra 9 285K 3.7 GHz - 64 GB - SSD 1 TB - UK |
| Type | Workstation - mini - AI PC, AI Workstation |
| Height (Rack Units) | 5U |
| Localisation | Language: English / region: United Kingdom |
| Processor | 1 x Intel Core Ultra 9 (Series 2) 285K / 3.7 GHz (up to 5.7 GHz, (24-core) |
| Processor Socket | LGA1851 Socket |
| Processor Main Features | Intel Turbo Boost Technology 2, Intel Smart Cache, Intel Turbo Boost Max 3.0, Intel Thermal Velocity Boost |
| Neural Processor Unit (NPU) | Intel AI Boost - up to 13 TOPS |
| Cache Memory | 36 MB L3 Cache |
| Cache Per Processor | 36 MB |
| RAM | 64 GB DDR5 SDRAM |
| Storage Controller | (NVM Express) |
| Hard Drive | SSD 1 TB - PCI Express 4.0 - M.2 - HP Z Turbo Drive, triple-level cell (TLC) |
| Optical Storage | No optical drive |
| Multi-GPU Configuration | 1 single GPU card / integrated GPU |
| Graphics Controller | PCIe 4.0 x8 - NVIDIA RTX 2000 Ada / Intel Graphics - up to 8 TOPS |
| Video Memory | 16 GB GDDR6 SDRAM |
| Networking | 1GbE, 802.11a, 802.11b/g/n, Wi-Fi 5, Wi-Fi 6, Bluetooth, Wi-Fi 7 |
| Keyboard | UK |
| Power | (50/60 Hz) |
| OS Provided | Windows 11 Pro |
| Software Included | HP Support Assistant, HP Secure Erase, HP Image Assistant, HP Documentation, HP Notifications, HP Sure Click, HP Sure Run, HP Sure Recover, HP Manageability Integration Kit, HP Sure Sense, HP Sure Admin, WPS Office, HP Client Security Manager Gen6, HP BIOSphere Gen6, myHP, HP Desktop Support Utilities, HP Performance Advisor 3.0, HP PC Hardware Diagnostics Windows, HP UEFI BIOS Certification level 2.7B |
| Colour | Black |
| Dimensions (WxDxH) | 21.1 cm x 21.8 cm x 6.9 cm |
| Weight | 2.4 kg |
| Manufacturer Selling Program | HP Smart Buy |
| Environmental Standards | ENERGY STAR Qualified |
Product Features:-
Robust processing power
The workstation features a 24-core Intel Core Ultra 9 processor, providing substantial computational capabilities for running complex applications and multitasking efficiently.
Fast data access
Equipped with a solid-state drive interface via PCI Express, the HP Z2 G1i enables rapid data retrieval and low latency for critical workflows.
Integrated security features
The workstation integrates a Trusted Platform Module (TPM 2. 0) security chip, ensuring enhanced protection for sensitive data and compliance with security standards.
Enhanced visual experiences
An integrated Intel graphics processor supports DisplayPort video output, allowing for high-quality graphics performance suitable for diverse applications.
Environmental durability
Engineered to function between 5 °C and 35 °C with a humidity range of 8 - 85% RH, the workstation is built for reliability across different operating environments.
What's in the box:-
HP Workstation Z2 G1i
Power adapter
Extended Specification:-
General
| Colour |
Black
|
| Built-in Devices |
Speaker
|
| Type |
Workstation
|
| Embedded Security |
Trusted Platform Module (TPM 2.0) Security Chip
|
| Localisation |
Language: English / region: United Kingdom
|
| Sensors |
HP Tamper Lock
|
| Product Form Factor |
Mini - 5U
|
| AI Level |
AI PC, AI Workstation
|
Expansion / Connectivity
| Slots |
1 (total) / 0 (free) x PCIe 5.0 x16 (x8 mode, full-length, low-profile)
2 (total) / 1 (free) x M.2 Card - 2280 (PCIe 5.0 x4 mode (for internal storage))
1 (total) / 0 (free) x M.2 Card - 2230 (PCIe 4.0 x1 mode and Intel CNVi wireless module)
|
| Interfaces |
1 x headphones/microphone (1 side) (CTIA and OMTP headset support)
4 x USB 3.2 Gen 2 (1 side, 3 rear) (one of them is charging)
2 x USB-C 3.2 Gen 2x2 (2 side) (charging)
2 x DisplayPort 1.4 (2 rear)
1 x LAN (Gigabit Ethernet) (1 rear)
2 x USB 3.1 - Type A
4 x Mini DisplayPort 1.4a
|
RAM
| Features |
Unbuffered
|
| Installed Size |
64 GB
|
| Configuration Features |
2 x 32 GB
|
| Slots |
2 (Total) / 0 (empty)
|
| Technology |
DDR5 SDRAM
|
| Form Factor |
SO-DIMM 262-pin
|
| Effective Memory Speed |
6400 MT/s
|
| Rated Memory Speed |
6400 MT/s
|
Networking
| Wireless LAN Supported |
Yes
|
| Interface (Bus) Type |
M.2 2230
|
| Ethernet Controller |
Intel I219-LM
|
| Wireless NIC |
Intel WI-FI 7 BE200
|
| Data Link Protocol |
Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6), Bluetooth 5.4, IEEE 802.11be (Wi-Fi 7)
|
| Features |
Wake on LAN (WoL), ACPI support, auto-uplink (auto MDI/MDI-X), PXE 2.1 support, dual stream (2x2), Intel Active Management Technology (AMT) 19
|
| Compliant Standards |
IEEE 802.3, IEEE 802.3u, IEEE 802.3i, IEEE 802.3z, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.11d, IEEE 802.11i, IEEE 802.11h, IEEE 802.11e, IEEE 802.1as, IEEE 802.11k, IEEE 802.3az, IEEE 802.11w, IEEE 802.11r, IEEE 802.11u, IEEE 802.11v
|
Miscellaneous
| Manufacturer Selling Program |
HP Smart Buy
|
| Security Slot Type |
Kensington security slot
|
| Theft/Intrusion Protection |
Security lock slot (cable lock sold separately), chassis intrusion sensor
|
| Compliant Standards |
RoHS, FIPS 140-2, WEEE, CECP, low halogen
|
Power
| Device Type |
Power adapter
|
| Power Provided |
280 Watt
|
| Efficiency |
89%
|
| Power Factor Correction |
Yes (active)
|
| Voltage Required |
AC 100-240 V (50/60 Hz)
|
Environmental Parameters
| Min Operating Temperature |
5 °C
|
| Max Operating Temperature |
35 °C
|
| Humidity Range Operating |
8 - 85% RH (non-condensing)
|
Storage Controller
| Type |
1
|
| RAID Level |
RAID 0, RAID 1
|
| Controller Interface Type |
NVM Express
|
Cache Memory
| Cache Per Processor |
36 MB
|
| Installed Size |
L3 Cache - 36 MB
|
Optical Storage:-
| Type |
No optical drive
|
Operating System / Software
| OS Provided |
Windows 11 Pro English
|
| Software |
HP Support Assistant, HP Secure Erase, HP Image Assistant, HP Documentation, HP Notifications, HP Sure Click, HP Sure Run, HP Sure Recover, HP Manageability Integration Kit, HP Sure Sense, HP Sure Admin, WPS Office, HP Client Security Manager Gen6, HP BIOSphere Gen6, myHP, HP Desktop Support Utilities, HP Performance Advisor 3.0, HP PC Hardware Diagnostics Windows, HP UEFI BIOS Certification level 2.7B
|
Monitor
| Monitor Type |
None.
|
Graphics Controller
| Video Interfaces |
DisplayPort
|
| Multi-GPU Configuration |
1 single GPU card / integrated GPU
|
| Bandwidth |
224 GBps
|
| Video Memory |
16 GB GDDR6 SDRAM
|
| Interface Type |
PCIe 4.0 x8
|
| Graphics Processor |
NVIDIA RTX 2000 Ada / Intel Graphics - up to 8 TOPS
|
Audio Output
| Compliant Standards |
High Definition Audio
|
Hard Drive
| Capacity |
1 x 1 TB
|
| Type |
SSD - M.2
|
| Features |
HP Z Turbo Drive, triple-level cell (TLC)
|
| Interface Type |
PCI Express 4.0
|
Input Device
| Type |
Mouse, keyboard
|
Dimensions & Weight
| Weight |
2.4 kg
|
| Width |
21.1 cm
|
| Depth |
21.8 cm
|
| Height |
6.9 cm
|
Dimensions & Weight (Shipping)
| Shipping Weight |
5.4 kg
|
| Shipping Depth |
16.9 cm
|
| Shipping Height |
29.7 cm
|
| Shipping Width |
49.9 cm
|
Keyboard
| Localization & Layout |
UK
|
| Keyboard Name |
HP 320K
|
Mouse
| Mouse Name |
HP 320M
|
Processor / Chipset
| CPU Qty |
1
|
| Max CPU Qty |
1
|
| CPU Upgradability |
Upgradable
|
| L2 cache |
40 MB
|
| Number of Cores |
24-core
|
| CPU Socket |
LGA1851 Socket
|
| Clock Speed |
3.7 GHz (P-core) / 3.2 GHz (E-core)
|
| Max Turbo Speed |
5.7 GHz (P-core) / 4.6 GHz (E-core)
|
| CPU |
Intel Core Ultra 9 (Series 2) 285K
|
| Chipset Type |
Intel W880
|
| Processor Main Features |
Intel Turbo Boost Technology 2, Intel Smart Cache, Intel Turbo Boost Max 3.0, Intel Thermal Velocity Boost
|
