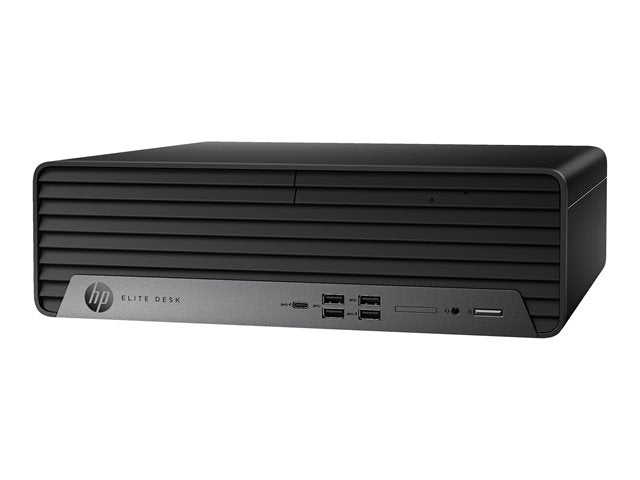

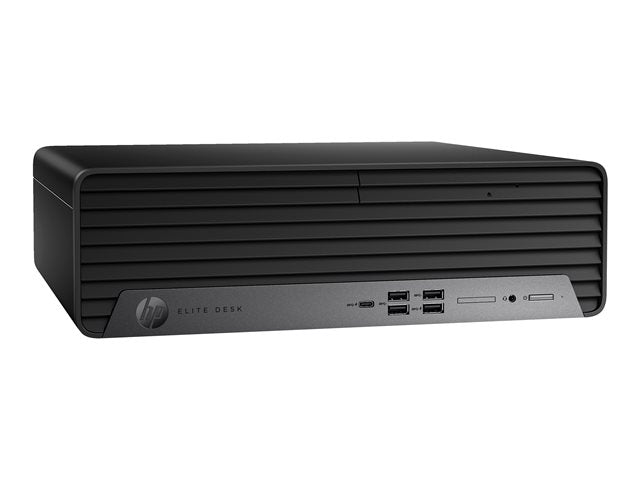

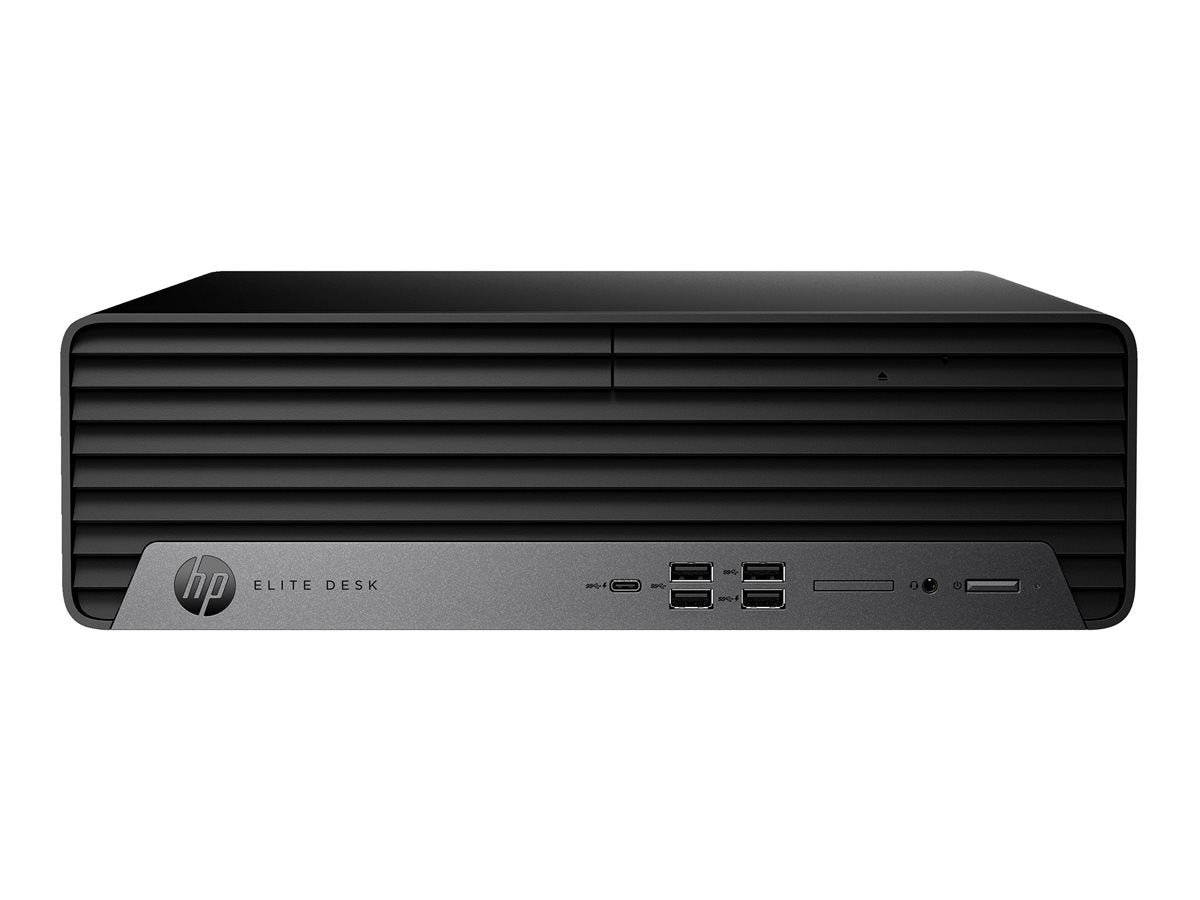

HP Elite 800 G9
SFF Core i5 i5-14500 / up to 5 GHz
vPro
RAM 16 GB
SSD 512 GB
NVMe
DVD-Writer
UHD Graphics 770
Gigabit Ethernet, IEEE 802.11ax (Wi-Fi 6), Bluetooth 5.4, IEEE 802.11be (Wi-Fi 7)
Win 11 Pro
monitor: none
keyboard: UK
Smart Buy
Weight: 7.12 KG
Main Specifications:-
| Product Description | HP Elite 800 G9 - SFF Core i5 i5-14500 2.6 GHz - vPro - 16 GB - SSD 512 GB - UK |
| Type | Personal computer - SFF |
| Platform Technology | Intel vPro Platform |
| Localisation | Language: English / region: United Kingdom |
| Processor | Intel Core i5 (14th Gen) i5-14500 / 2.6 GHz (up to 5 GHz, (14-core) |
| Processor Main Features | Intel Turbo Boost Technology |
| Cache Memory | 24 MB L3 Cache |
| Cache Per Processor | 24 MB |
| RAM | 16 GB (installed) / 128 GB (max) - DDR5 SDRAM |
| Storage Controller | SATA/NVMe (SATA-600 / NVMe) |
| Hard Drive | SSD 512 GB - PCI Express - M.2 2280 - NVM Express (NVMe) |
| Optical Storage | DVD-Writer |
| Card Reader | 5 in 1 |
| Graphics Controller | Intel UHD Graphics 770 Dynamic Video Memory Technology |
| Audio Output | Stereo |
| Networking | 1GbE, 802.11a, 802.11b/g/n, Wi-Fi 5, Wi-Fi 6, Bluetooth, Wi-Fi 7 |
| Keyboard | UK |
| Power | (50/60 Hz) |
| OS Provided | Windows 11 Pro |
| Software Included | HP Support Assistant, HP PC Hardware Diagnostics UEFI, HP Secure Erase, HP Client Catalogue (free download), HP Setup Integrated OOBE, HP Notifications, HP Connection Optimizer, HP Sure Click, HP Privacy Settings, HP Cloud Recovery, HP Sure Sense, HP Sure Admin, HP QuickDrop, HP Client Management Script Library (free download), HP BIOSphere Gen6, HP Desktop Support Utilities, HP Image Assistant Gen5 (free download), HP Smart Support, HP Manageability Integration Kit (free download), HP Connect for Microsoft Endpoint Manager, HP Patch Assistant (free download), HP Sure Recover Gen5, HP Sure Run Gen5, HP Services Scan, HP Sure Start Gen7, HP Driver Packs (free download) |
| Dimensions (WxDxH) | 33.8 cm x 30.8 cm x 10 cm |
| Weight | 5.4 kg |
| Manufacturer Selling Program | HP Smart Buy |
| Manufacturer Warranty | Limited warranty - parts and labour - 1 year - on-site |
Product Features:-
Efficient processing capabilities
The Intel Core i5 processor ensures efficient performance and responsiveness for a variety of applications, making it suitable for both work and entertainment.
Rapid data access
An NVMe SSD provides rapid data access speeds, which enhances system responsiveness and reduces boot and load times.
Versatile audio experience
Equipped with a high definition audio output, the HP Elite 800 G9 delivers exceptional sound performance, featuring a maximum sampling rate of 192 kHz.
Robust connectivity options
With multiple ports including USB, USB-C, and DisplayPort, this system enables easy connection to a wide array of devices, enhancing versatility.
Enhanced multitasking performance
Utilizing DDR5 SDRAM technology, this PC improves multitasking capabilities, allowing users to run multiple applications smoothly without lag.
Extended Specification:-
General
| Type |
Personal computer
|
| Product Form Factor |
SFF
|
| Embedded Security |
Trusted Platform Module (TPM 2.0) Security Chip
|
| Localisation |
Language: English / region: United Kingdom
|
| Platform Technology |
Intel vPro Platform
|
| Sensors |
HP Tamper Lock
|
Expansion / Connectivity
| Bays |
2 (total) / 2 (free) x internal 3.5"
1 (total) / 0 (free) x external 5.25" Slim Line
|
| Slots |
1 (total) / 0 (free) x M.2 Card - 2230 (for wireless module)
2 (total) / 1 (free) x M.2 Card - 2280 (for internal storage)
2 (total) / 2 (free) x PCIe 3.0 x1
1 (total) / 1 (free) x PCIe 3.0 x16 (x4 mode)
1 (total) / 1 (free) x PCIe 4.0 x16
|
| Interfaces |
1 x USB-C 3.2 Gen 2x2 (1 in front) (charging)
4 x USB 3.2 Gen 2 (4 in front) (one of them is charging)
1 x headphones/microphone (1 front) (CTIA and OMTP headset support)
1 x audio line-out/line-in
2 x DisplayPort 1.4a
3 x USB 2.0 (3 rear) (two of them with wake functionality)
3 x USB 3.2 Gen 1 (3 rear)
1 x LAN (Gigabit Ethernet) - RJ-45
1 x HDMI
|
Manufacturer Warranty
| Service & Support |
Limited warranty - parts and labour - 1 year - on-site
|
RAM
| Features |
Unbuffered
|
| Configuration Features |
1 x 16 GB
|
| Installed Size |
16 GB (installed) / 128 GB (max)
|
| Form Factor |
DIMM 288-pin
|
| Effective Memory Speed |
4800 MHz
|
| Rated Memory Speed |
4800 MHz
|
| Slots |
4 (Total) / 3 (empty)
|
| Technology |
DDR5 SDRAM
|
Networking
| Wireless LAN Supported |
Yes
|
| Remote Management Protocol |
SNMP 2
|
| Interface (Bus) Type |
PCI Express Mini Card (M.2)
|
| Ethernet Controller |
Intel I219-LM
|
| Features |
Wake on LAN (WoL), ACPI support, auto-uplink (auto MDI/MDI-X), PXE 2.1 support, dual stream (2x2), Intel Active Management Technology (AMT) 16
|
| Wireless NIC |
Intel WI-FI 7 BE200
|
| Compliant Standards |
IEEE 802.3, IEEE 802.3u, IEEE 802.3i, IEEE 802.3z, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.11d, IEEE 802.11i, Wi-Fi CERTIFIED, IEEE 802.11h, IEEE 802.11e, IEEE 802.1as, IEEE 802.11k, IEEE 802.3az, IEEE 802.11r, IEEE 802.11v
|
| Data Link Protocol |
Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6), Bluetooth 5.4, IEEE 802.11be (Wi-Fi 7)
|
Miscellaneous
| Manufacturer Selling Program |
HP Smart Buy
|
| Security Slot Type |
Kensington security slot
|
| Theft/Intrusion Protection |
Security lock slot (cable lock sold separately), padlock loop, chassis intrusion sensor
|
| Compliant Standards |
FCC Class B certified, ICES-003, CCC, FIPS 140-2 Level 2, RoHS, UL 60950-1, CSA C22.2 No. 60950-1-07, WEEE, KCC Class B, Common Criteria EAL4+, CECP, VCCI Class B, SEPA, low halogen, UL 62368-1, CAN/CSA-C22.2 No. 62368-1-14, IEEE 1680.1
|
Power
| Device Type |
Power supply
|
| Power Provided |
260 Watt
|
| Efficiency |
92%
|
| Power Factor Correction |
Yes (active)
|
| Voltage Required |
AC 90-264 V (50/60 Hz)
|
Environmental Parameters
| Min Operating Temperature |
10 °C
|
| Max Operating Temperature |
35 °C
|
| Humidity Range Operating |
10 - 90% RH (non-condensing)
|
Storage Controller:-
| Channel Qty |
4
|
| Controller Interface Type |
SATA-600 / NVMe
|
| Type |
1 x SATA/NVMe
|
Cache Memory
| Cache Per Processor |
24 MB
|
| Installed Size |
L3 Cache - 24 MB
|
Optical Storage
| Type |
DVD-Writer
|
Operating System / Software
| OS Provided |
Windows 11 Pro English
|
| Software |
HP Support Assistant, HP PC Hardware Diagnostics UEFI, HP Secure Erase, HP Client Catalogue (free download), HP Setup Integrated OOBE, HP Notifications, HP Connection Optimizer, HP Sure Click, HP Privacy Settings, HP Cloud Recovery, HP Sure Sense, HP Sure Admin, HP QuickDrop, HP Client Management Script Library (free download), HP BIOSphere Gen6, HP Desktop Support Utilities, HP Image Assistant Gen5 (free download), HP Smart Support, HP Manageability Integration Kit (free download), HP Connect for Microsoft Endpoint Manager, HP Patch Assistant (free download), HP Sure Recover Gen5, HP Sure Run Gen5, HP Services Scan, HP Sure Start Gen7, HP Driver Packs (free download)
|
Monitor
| Monitor Type |
None.
|
Graphics Controller
| HDCP Compatible |
Yes
|
| Video Interfaces |
HDMI, DisplayPort
|
| Graphics Processor |
Intel UHD Graphics 770 Dynamic Video Memory Technology
|
Audio Output
| Sound Output Mode |
Stereo
|
| Max Sampling Rate |
192 kHz
|
| Compliant Standards |
High Definition Audio
|
Hard Drive
| Interface Type |
PCI Express
|
| Capacity |
1 x 512 GB
|
| Features |
NVM Express (NVMe)
|
| Type |
SSD - M.2 2280
|
Input Device
| Type |
Mouse, keyboard
|
