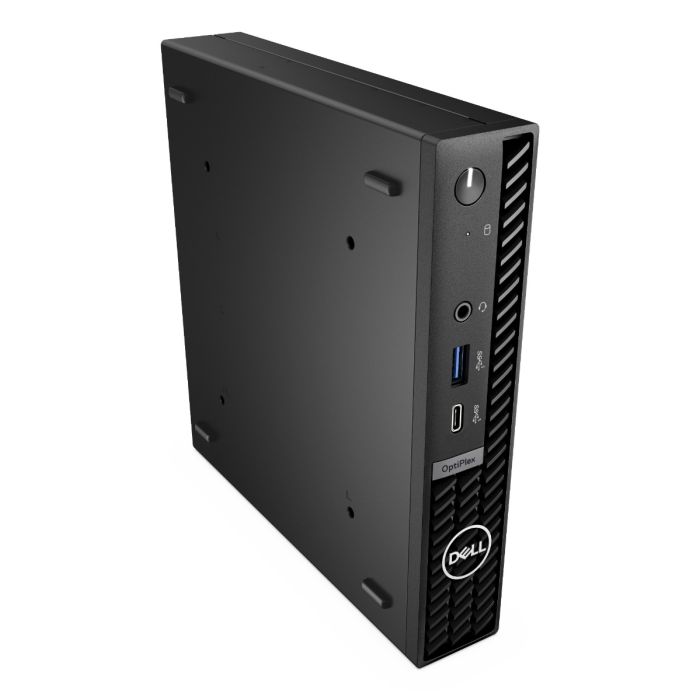

Dell OptiPlex 7020 (version 2024)
Micro Core i5 12500T / up to 4.4 GHz
RAM 16 GB
SSD 512 GB
NVMe, Class 25
UHD Graphics 770
Gigabit Ethernet, Bluetooth, IEEE 802.11ax (Wi-Fi 6E)
Win 11 Pro
monitor: none
black
BTS
with 1 Year Basic Onsite (AT, DE
2 Years)
Weight: 2.92 KG
Main Specifications:-
| Product Description | Dell OptiPlex 7020 (version 2024) - micro Core i5 12500T 2 GHz - 16 GB - SSD 512 GB |
| Type | Personal computer - micro |
| Bundled Services | 1 Year Basic Onsite (AT, DE - 2 Years) |
| Processor | Intel Core i5 (12th Gen) 12500T / 2 GHz (up to 4.4 GHz, (6-core) |
| Processor Main Features | 12 Threads, 35W CPU |
| Cache Memory | 18 MB |
| Cache Per Processor | 18 MB |
| RAM | 16 GB (installed) / 64 GB (max) - DDR5 SDRAM |
| Hard Drive | SSD 512 GB - PCI Express 4.0 - M.2 2230 - NVM Express (NVMe), Class 25 |
| Optical Storage | No optical drive |
| Graphics Controller | Intel UHD Graphics 770 Shared Video Memory (UMA) |
| Networking | 1GbE, Bluetooth, 802.11a, 802.11b/g/n, Wi-Fi 5, Wi-Fi 6E |
| Power | (50/60 Hz) |
| OS Provided | Windows 11 Pro |
| Software Included | Intel Rapid Storage Technology, Intel Connectivity Performance Suite, Dell Additional Softwares, Activate your Microsoft 365 for a 30 day trial |
| Colour | Black |
| Dimensions (WxDxH) | 3.6 cm x 17.8 cm x 18.2 cm |
| Weight | 1.24 kg |
| Pricing Type | Build To Stock (BTS) |
| Environmental Standards | ENERGY STAR Qualified EPEAT Gold |
| Carbon Footprint | 91 kg carbon emissions |
Product Features:-
Efficient processing capabilities
The Intel Core i5 processor delivers solid performance, making it suitable for various applications from data processing to multimedia tasks.
Fast storage solution
With an NVM Express (NVMe) SSD, data retrieval speeds are significantly improved, leading to quicker boot times and smooth operation.
Robust connectivity options
Featuring USB 3. 2 Gen 1 and DisplayPort 1. 4a, the OptiPlex 7020 allows for versatile connections to various peripherals and displays.
Secure design features
This system includes a Kensington security slot and chassis intrusion switch, offering enhanced protection against unauthorized access.
Reliable operation under varying conditions
Designed to function within a temperature range of 10°C to 35°C and a humidity range of 20 to 80%, ensuring durability in different environments.
Extended Specification:-
General
| Colour |
Black
|
| Type |
Personal computer
|
| Product Form Factor |
Micro
|
| Embedded Security |
Trusted Platform Module (TPM 2.0) Security Chip
|
| Built-in Devices |
Internal aerial
|
| Bundled Services |
1 Year Basic Onsite (AT, DE - 2 Years)
|
Expansion / Connectivity
| Slots |
2 M.2 Card - 2230/2280 (for SSD)
1 (total) / 0 (free) x M.2 Card - 2230 (for wireless module)
|
| Interfaces |
1 x LAN (Gigabit Ethernet)
3 x USB 3.2 Gen 1 (1 front, 2 rear) (one of them with PowerShare)
2 x USB 2.0 (2 rear) (one of them supports SmartPower On)
1 x headphones/microphone (1 in front)
1 x DisplayPort 1.4a
1 x HDMI
1 x USB-C 3.2 Gen 2 (1 front)
|
RAM
| Configuration Features |
1 x 16 GB
|
| Installed Size |
16 GB (installed) / 64 GB (max)
|
| Slots |
2 (Total) / 1 (empty)
|
| Technology |
DDR5 SDRAM
|
| Form Factor |
SO-DIMM 262-pin
|
Networking
| Wireless LAN Supported |
Yes
|
| Interface (Bus) Type |
M.2 2230
|
| Ethernet Controller |
Intel I219-LM
|
| Features |
Dual stream (2x2)
|
| Compliant Standards |
IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax
|
| Wireless NIC |
Intel Wi-Fi 6E AX 211
|
| Data Link Protocol |
Ethernet, Fast Ethernet, Gigabit Ethernet, Bluetooth, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6E)
|
Miscellaneous
| Pricing Type |
Build To Stock (BTS)
|
| Theft/Intrusion Protection |
Security lock slot (cable lock sold separately), padlock loop, chassis intrusion switch
|
| Security Slot Type |
Kensington security slot
|
Power
| Device Type |
Power adapter
|
| Power Provided |
90 Watt
|
| Voltage Required |
AC 100-240 V (50/60 Hz)
|
Environmental Parameters
| Min Operating Temperature |
10 °C
|
| Max Operating Temperature |
35 °C
|
| Humidity Range Operating |
20 - 80% (non-condensing)
|
Cache Memory
| Installed Size |
18 MB
|
| Cache Per Processor |
18 MB
|
Optical Storage:-
| Type |
No optical drive
|
Operating System / Software:-
| OS Provided |
Windows 11 Pro Dutch / English / French / German / Italian
|
| Software |
Intel Rapid Storage Technology, Intel Connectivity Performance Suite, Dell Additional Softwares, Activate your Microsoft 365 for a 30 day trial
|
Monitor
| Monitor Type |
None.
|
Graphics Controller
| Video Interfaces |
HDMI, DisplayPort
|
| Graphics Processor |
Intel UHD Graphics 770 Shared Video Memory (UMA)
|
Audio Output
| Compliant Standards |
High Definition Audio
|
Hard Drive
| Capacity |
1 x 512 GB
|
| Interface Type |
PCI Express 4.0
|
| Type |
SSD - M.2 2230
|
| Features |
NVM Express (NVMe), Class 25
|
Dimensions & Weight
| Width |
3.6 cm
|
| Depth |
17.8 cm
|
| Height |
18.2 cm
|
| Weight |
1.24 kg
|
Keyboard
| Keyboard Name |
Dell KB216 Multimedia Keyboard
|
Mouse
| Mouse Name |
Dell MS116 USB Optical Mouse
|
Processor / Chipset
| CPU Qty |
1
|
| Max CPU Qty |
1
|
| Clock Speed |
2 GHz
|
| Number of Cores |
6-core
|
| Max Turbo Speed |
4.4 GHz
|
| Chipset Type |
Intel Q670
|
| CPU |
Intel Core i5 (12th Gen) 12500T
|
| Processor Main Features |
12 Threads, 35W CPU
|
Sustainability Information
| EOL (kg CO2e) |
1
|
| Logistics (kg CO2e) |
2
|
| ENERGY STAR Certified |
Yes
|
| Use (kg CO2e) |
28
|
| Total Carbon w/o Use Phase (kg CO2e) |
62
|
| Manufacturing (kg CO2e) |
59
|
| EPEAT Compliant |
EPEAT Gold
|
| Carbon Footprint |
91 kg carbon emissions
|
| PAIA Version |
GaBi version 1
|
