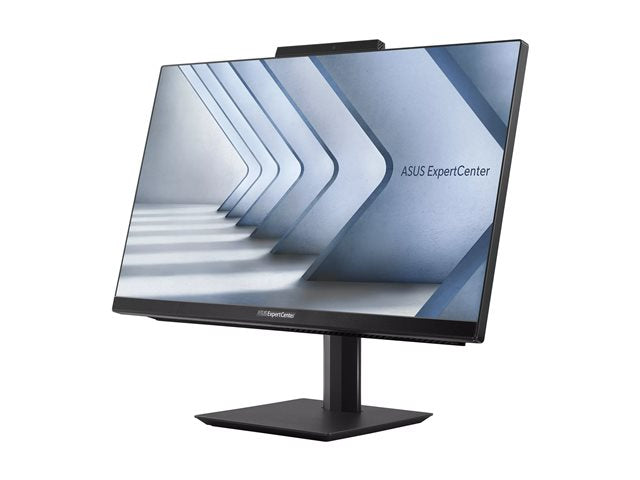

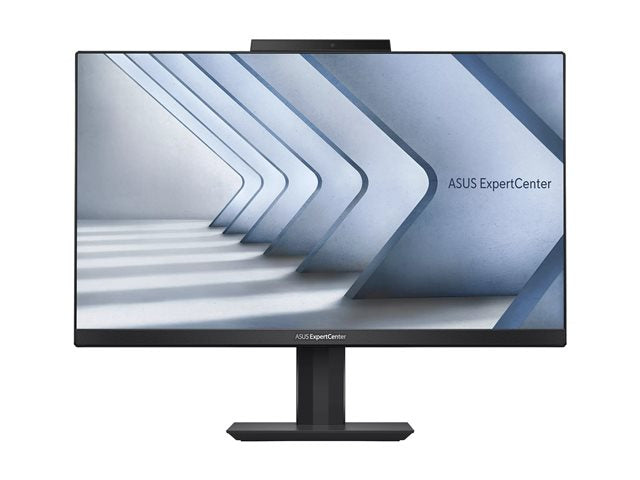

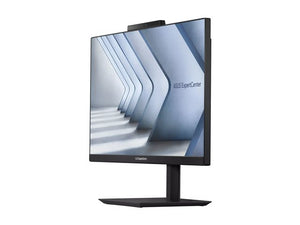

ASUS ExpertCenter E5 AiO 24
All-in-one Core i5 1340P / up to 4.6 GHz
RAM 8 GB
SSD 512 GB
NVMe
Intel Iris Xe Graphics
IEEE 802.11ax (Wi-Fi 6E), Gigabit Ethernet, Bluetooth 5.3
Win 11 Pro
monitor: LED 23.8" 1920 x 1080 (Full HD) @ 60 Hz
black
Weight: 12.34 KG
Main Specifications:-
| Product Description | ASUS ExpertCenter E5 AiO 24 E5402WVAK-BA144X - all-in-one Core i5 1340P 1.9 GHz - 8 GB - SSD 512 GB - LED 23.8" |
| Type | Personal computer - all-in-one |
| Processor | Intel Core i5 (13th Gen) 1340P / 1.9 GHz (up to 4.6 GHz, (12-core) |
| Cache Memory | 12 MB |
| Cache Per Processor | 12 MB |
| RAM | 8 GB DDR4 SDRAM |
| Storage Controller | SATA (SATA 6Gb/s) |
| Hard Drive | SSD 512 GB - PCI Express 4.0 - M.2 - NVM Express (NVMe) |
| Optical Storage | No optical drive |
| Card Reader | 2 in 1 |
| Monitor | 23.8" - LED - 1920 x 1080 (Full HD) @ 60 Hz - 16:9 |
| Graphics Controller | Intel Iris Xe Graphics |
| Camera | Yes |
| Audio Output | Stereo |
| Networking | Wi-Fi 6E, 802.11a, Wi-Fi 5, 802.11b/g/n, 1GbE, Bluetooth 5.3 |
| Power | (50/60 Hz) |
| OS Provided | Windows 11 Pro |
| Software Included | Microsoft 365 (1 month trial) |
| Colour | Black |
| Dimensions (WxDxH) | 54.1 cm x 20.1 cm x 42.6 cm |
| Weight | 8.9 kg |
| Environmental Standards | ENERGY STAR Qualified EPEAT Silver |
| Manufacturer Warranty | Limited warranty - 1 year - pick-up and return |
Product Features:-
Stunning display
The 23. 8-inch Full HD display with a native resolution of 1920 x 1080 provides clear and vibrant visuals, while the anti-glare feature minimizes reflections for comfortable viewing.
Powerful processing
Powered by a 12-core Intel Core i5-1340P processor with a clock speed of 1. 9 GHz and a turbo speed of 4. 6 GHz, this computer offers robust performance for multitasking and demanding applications.
Amplified storage
With a 512 GB SSD, this all-in-one computer ensures quick data access and sufficient storage, facilitating a smooth user experience.
Advanced connectivity
Features multiple connectivity options including Thunderbolt 4, USB 3. 2 Gen 1, HDMI, and DisplayPort, enabling seamless connections to various peripherals and networks.
Enhanced security
The integrated privacy shutter and IR camera provide versatility for video calls and enhance security with Windows Hello support for safe log-ins
Extended Specification:-
General
| Colour |
Black
|
| Type |
Personal computer
|
| Product Form Factor |
All-in-one
|
| Embedded Security |
Trusted Platform Module (TPM) Security Chip
|
Expansion / Connectivity
| Interfaces |
3 x USB 3.2 Gen 1
1 x USB-C 3.2 Gen 2
2 x USB 2.0
1 x LAN (Gigabit Ethernet)
1 x headphones
1 x HDMI output
1 x DisplayPort
1 x Thunderbolt 4/USB4/DisplayPort (Power Delivery)
|
Manufacturer Warranty
| Service & Support |
Limited warranty - 1 year - pick-up and return
|
RAM
| Installed Size |
8 GB
|
| Technology |
DDR4 SDRAM
|
| Form Factor |
SO-DIMM 260-pin
|
| Slots |
2 (Total) / 1 (empty)
|
Networking
| Wireless LAN Supported |
Yes
|
| Data Link Protocol |
IEEE 802.11ax (Wi-Fi 6E), IEEE 802.11b, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11g, IEEE 802.11n, Ethernet, Fast Ethernet, Gigabit Ethernet, Bluetooth 5.3
|
Miscellaneous
| Theft/Intrusion Protection |
Security lock slot (cable lock sold separately)
|
| Compliant Standards |
RoHS, REACH
|
| Security Slot Type |
Kensington security slot
|
Power
| Device Type |
Power adapter
|
| Power Provided |
120 Watt
|
| Voltage Required |
AC 100-240 V (50/60 Hz)
|
Storage Controller
| Type |
1 x SATA
|
| Controller Interface Type |
SATA 6Gb/s
|
Cache Memory
| Installed Size |
12 MB
|
| Cache Per Processor |
12 MB
|
Optical Storage
| Type |
No optical drive
|
Operating System / Software
| OS Provided |
Windows 11 Pro
|
| Software |
Microsoft 365 (1 month trial)
|
Monitor:-
| V-Sync Rate at Max Res. |
60 Hz
|
| Widescreen Display |
Yes
|
| Monitor Type |
LED
|
| Image Aspect Ratio |
16:9
|
| Diagonal Size |
23.8"
|
| Image Brightness |
250 cd/m²
|
| Native Resolution |
1920 x 1080 (Full HD)
|
| Colour Gamut |
100% sRGB
|
| Monitor Features |
3-sided bezeless, anti-glare
|
Graphics Controller
| Video Interfaces |
HDMI, DisplayPort
|
| Graphics Processor |
Intel Iris Xe Graphics
|
Audio Output
| Sound Output Mode |
Stereo
|
Hard Drive
| Capacity |
1 x 512 GB
|
| Features |
NVM Express (NVMe)
|
| Type |
SSD - M.2
|
| Interface Type |
PCI Express 4.0
|
Input Device
| Type |
Mouse, keyboard
|
Audio Input
| Type |
Array microphone
|
Camera
| Camera |
Yes
|
| Resolution |
720p
|
| Features |
IR camera, privacy shutter, Windows Hello
|
Dimensions & Weight
| Height |
42.6 cm
|
| Depth |
20.1 cm
|
| Weight |
8.9 kg
|
| Width |
54.1 cm
|
Keyboard
| Connectivity |
Wireless
|
Card Reader
| Supported Flash Memory Cards |
MultiMediaCard, SD Memory Card
|
| Type |
2 in 1 card reader
|
Mouse
| Connectivity |
Wireless
|
Processor / Chipset
| CPU Qty |
1
|
| Max CPU Qty |
1
|
| Clock Speed |
1.9 GHz
|
| Max Turbo Speed |
4.6 GHz
|
| Number of Cores |
12-core
|
| CPU |
Intel Core i5 (13th Gen) 1340P
|
Sustainability Information
| ENERGY STAR Certified |
Yes
|
| EPEAT Compliant |
EPEAT Silver
|
